G11 Glass Reinforced Tubes
- .187" Wall Thickness
G11 Glass Reinforced Tubes
(yellow green to amber)
This grade is similar to G10/FR4, with the addition of a higher operating
temperature and some improved mechanical strength at elevated temperatures.
The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)
G11 Tubes Technical Data Sheet
G11 Tubes Chemical Resistance Chart
Tubes are made in random lengths between 30" - 36".
Our pricing and minimums are based on the 36".
Tubes can also be made in 42" to 48" random lengths for the same pricing.
Measured lengths of 36"±1" and 48"±1" are also available via manual quote.
| .187" Wall Thickness G11 Tubes | |||||
| Part # | OD (in.) | ID (in.) | Price Per Foot | Minimum | Order Online |
|---|---|---|---|---|---|
| KM-1503 | 0.875 | 0.500 | $70.13 | 15 Feet | Add to Order |
| KM-1508 | 0.937 | 0.562 | $74.57 | 15 Feet | Add to Order |
| KM-1514 | 1.000 | 0.625 | $54.28 | 21 Feet | Add to Order |
| KM-10898 | 1.062 | 0.687 | $57.35 | 18 Feet | Add to Order |
| KM-1513K | 1.125 | 0.750 | $60.40 | 18 Feet | Add to Order |
| KM-9259 | 1.187 | 0.812 | $63.48 | 18 Feet | Add to Order |
| KM-1519 | 1.250 | 0.875 | $66.55 | 18 Feet | Add to Order |
| KM-10732 | 1.312 | 0.937 | $69.60 | 15 Feet | Add to Order |
| KM-1525 | 1.375 | 1.000 | $72.68 | 15 Feet | Add to Order |
| KM-10741 | 1.437 | 1.062 | $75.73 | 15 Feet | Add to Order |
| KM-10718 | 1.500 | 1.125 | $78.80 | 15 Feet | Add to Order |
| KM-10083 | 1.562 | 1.187 | $81.85 | 15 Feet | Add to Order |
| KM-1529 | 1.625 | 1.250 | $84.95 | 12 Feet | Add to Order |
| KM-10178 | 1.687 | 1.312 | $87.98 | 12 Feet | Add to Order |
| KM-10177 | 1.750 | 1.375 | $91.08 | 12 Feet | Add to Order |

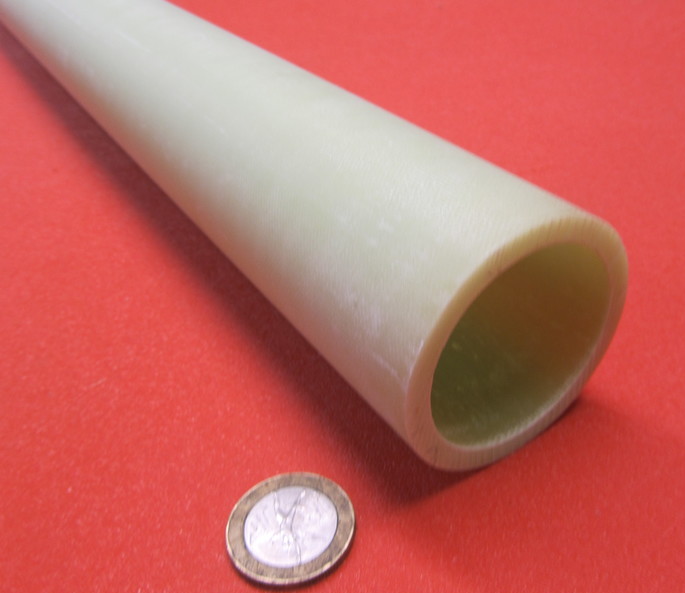

| KM-10176 | 1.812 | 1.437 | $94.13 | 12 Feet | Add to Order |

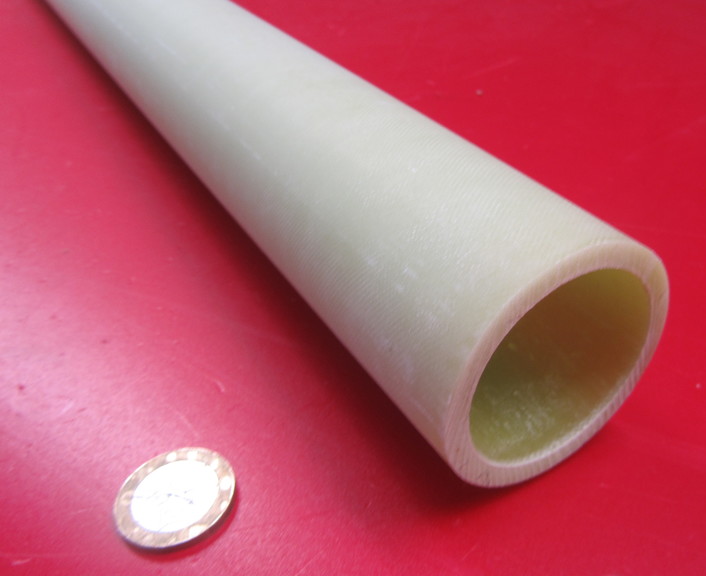

| KM-10175 | 1.875 | 1.500 | $97.20 | 12 Feet | Add to Order |

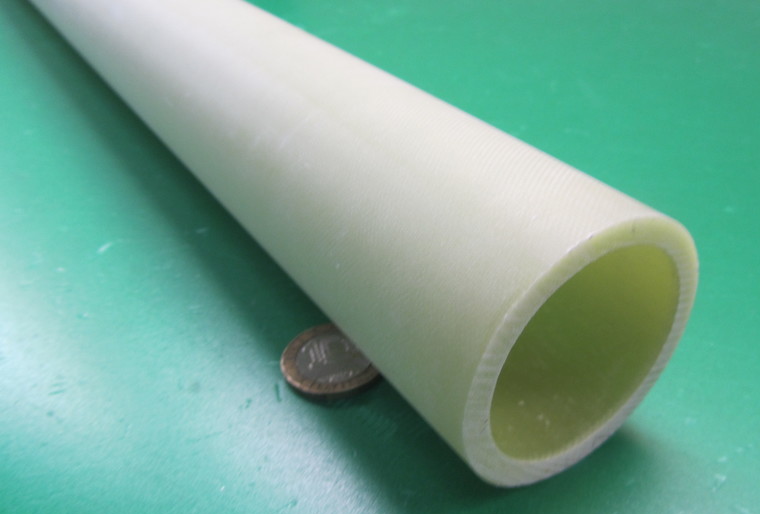

| KM-10174 | 1.937 | 1.562 | $100.25 | 12 Feet | Add to Order |

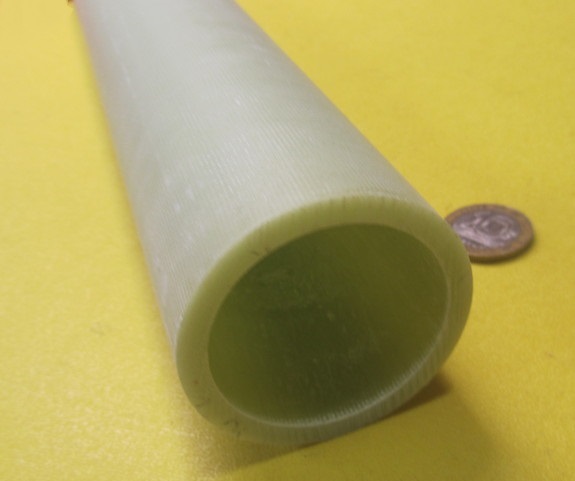

| KM-10165 | 2.000 | 1.625 | $103.35 | 12 Feet | Add to Order |

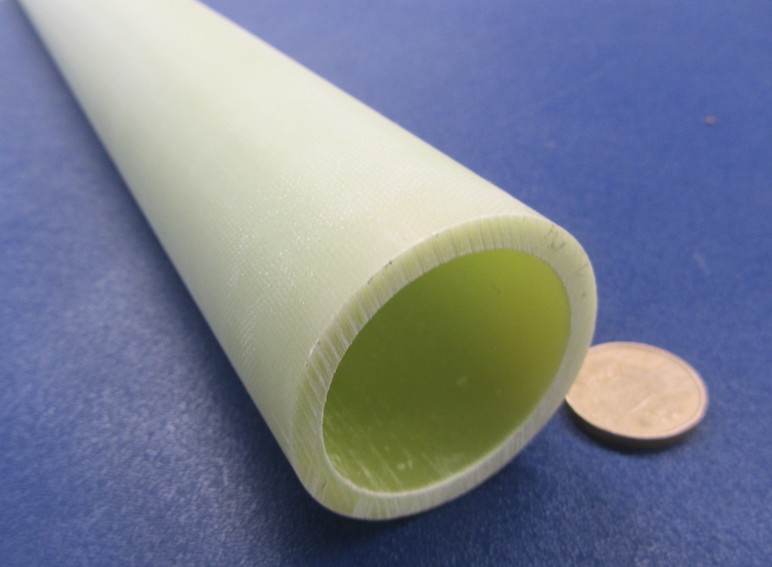

| KM-10172 | 2.062 | 1.687 | $106.38 | 12 Feet | Add to Order |
| KM-10180 | 2.125 | 1.750 | $109.48 | 12 Feet | Add to Order |
| KM-10170 | 2.187 | 1.812 | $112.52 | 9 Feet | Add to Order |
| KM-10169 | 2.250 | 1.875 | $115.60 | 9 Feet | Add to Order |
| KM-9346 | 2.312 | 1.937 | $118.65 | 9 Feet | Add to Order |
| KM-9345 | 2.375 | 2.000 | $121.73 | 9 Feet | Add to Order |
| KM-9344 | 2.437 | 2.062 | $124.77 | 9 Feet | Add to Order |
| KM-9343 | 2.500 | 2.125 | $127.88 | 9 Feet | Add to Order |
| KM-9328 | 2.562 | 2.187 | $130.90 | 9 Feet | Add to Order |
| KM-9341 | 2.625 | 2.250 | $134.00 | 9 Feet | Add to Order |
| KM-9354 | 2.687 | 2.312 | $137.05 | 9 Feet | Add to Order |
| KM-9339 | 2.750 | 2.375 | $140.13 | 9 Feet | Add to Order |
| KM-9338 | 2.812 | 2.437 | $143.18 | 9 Feet | Add to Order |
| KM-9337 | 2.875 | 2.500 | $146.28 | 9 Feet | Add to Order |
| KM-9336 | 2.937 | 2.562 | $149.30 | 9 Feet | Add to Order |
| KM-9335 | 3.000 | 2.625 | $152.40 | 9 Feet | Add to Order |
| KM-9334 | 3.062 | 2.687 | $155.45 | 9 Feet | Add to Order |
| KM-9162 | 3.125 | 2.750 | $158.52 | 9 Feet | Add to Order |
| KM-9333 | 3.187 | 2.812 | $161.58 | 9 Feet | Add to Order |
| KM-9218 | 3.250 | 2.875 | $164.68 | 9 Feet | Add to Order |
| KM-9217 | 3.312 | 2.937 | $167.70 | 6 Feet | Add to Order |
| KM-9216 | 3.375 | 3.000 | $170.80 | 6 Feet | Add to Order |
| KM-9215 | 3.437 | 3.062 | $173.85 | 6 Feet | Add to Order |
| KM-9214 | 3.500 | 3.125 | $176.92 | 6 Feet | Add to Order |
| KM-9213 | 3.562 | 3.187 | $179.98 | 6 Feet | Add to Order |
| KM-9212 | 3.625 | 3.250 | $183.05 | 6 Feet | Add to Order |
| KM-9211 | 3.687 | 3.312 | $186.10 | 6 Feet | Add to Order |
| KM-9210 | 3.750 | 3.375 | $189.20 | 6 Feet | Add to Order |
| KM-9209 | 3.812 | 3.437 | $192.23 | 6 Feet | Add to Order |
| KM-9208 | 3.875 | 3.500 | $195.33 | 6 Feet | Add to Order |
| KM-9207 | 3.937 | 3.562 | $198.38 | 6 Feet | Add to Order |
| KM-9191 | 4.000 | 3.625 | $201.45 | 6 Feet | Add to Order |
| KM-9205 | 4.062 | 3.687 | $204.50 | 6 Feet | Add to Order |
| KM-9084 | 4.125 | 3.750 | $207.60 | 6 Feet | Add to Order |
| KM-9076 | 4.187 | 3.812 | $210.63 | 6 Feet | Add to Order |
| KM-9056 | 4.250 | 3.875 | $213.73 | 6 Feet | Add to Order |
| KM-9057 | 4.312 | 3.937 | $216.77 | 6 Feet | Add to Order |
| KM-9058 | 4.375 | 4.000 | $219.85 | 6 Feet | Add to Order |
| KM-9059 | 4.437 | 4.062 | $222.90 | 6 Feet | Add to Order |
| KM-9110 | 4.500 | 4.125 | $226.00 | 6 Feet | Add to Order |
| KM-9109 | 4.562 | 4.187 | $229.03 | 6 Feet | Add to Order |
| KM-9108 | 4.625 | 4.250 | $232.13 | 6 Feet | Add to Order |
| KM-9107 | 4.687 | 4.312 | $235.17 | 6 Feet | Add to Order |
| KM-9094 | 4.750 | 4.375 | $238.25 | 6 Feet | Add to Order |
| KM-9092 | 4.812 | 4.437 | $241.30 | 6 Feet | Add to Order |
| KM-9106 | 4.875 | 4.500 | $244.38 | 6 Feet | Add to Order |
| KM-8958 | 4.937 | 4.562 | $247.43 | 6 Feet | Add to Order |
| KM-9088 | 5.000 | 4.625 | $250.52 | 6 Feet | Add to Order |
| KM-9089 | 5.062 | 4.687 | $253.55 | 6 Feet | Add to Order |
| KM-9090 | 5.125 | 4.750 | $256.65 | 6 Feet | Add to Order |
| KM-9091 | 5.187 | 4.812 | $259.70 | 6 Feet | Add to Order |
| KM-9105 | 5.250 | 4.875 | $288.55 | 6 Feet | Add to Order |
| KM-9093 | 5.312 | 4.937 | $291.90 | 6 Feet | Add to Order |
| KM-9086 | 5.375 | 5.000 | $295.28 | 6 Feet | Add to Order |
| KM-9095 | 5.437 | 5.062 | $298.63 | 6 Feet | Add to Order |
| KM-9096 | 5.500 | 5.125 | $302.03 | 6 Feet | Add to Order |
| KM-9097 | 5.562 | 5.187 | $305.35 | 6 Feet | Add to Order |
| KM-9098 | 5.625 | 5.250 | $308.75 | 6 Feet | Add to Order |
| KM-9099 | 5.687 | 5.312 | $312.10 | 6 Feet | Add to Order |
| KM-9039 | 5.750 | 5.375 | $315.48 | 6 Feet | Add to Order |
| KM-9104 | 5.812 | 5.437 | $318.83 | 6 Feet | Add to Order |
| KM-8985 | 5.875 | 5.500 | $322.22 | 6 Feet | Add to Order |
| KM-9068 | 5.937 | 5.562 | $325.55 | 6 Feet | Add to Order |
| KM-9007 | 6.000 | 5.625 | $328.95 | 6 Feet | Add to Order |
| KM-8978 | 6.062 | 5.687 | $332.30 | 6 Feet | Add to Order |
| KM-8979 | 6.125 | 5.750 | $335.68 | 3 Feet | Add to Order |
| KM-8980 | 6.187 | 5.812 | $339.03 | 3 Feet | Add to Order |
| KM-8981 | 6.250 | 5.875 | $342.43 | 3 Feet | Add to Order |
| KM-8982 | 6.312 | 5.937 | $345.75 | 3 Feet | Add to Order |
| KM-9008 | 6.375 | 6.000 | $349.15 | 3 Feet | Add to Order |
| KM-8984 | 6.437 | 6.062 | $313.83 | 6 Feet | Add to Order |
| KM-8977 | 6.500 | 6.125 | $316.98 | 6 Feet | Add to Order |
| KM-8986 | 6.562 | 6.187 | $320.10 | 6 Feet | Add to Order |
| KM-8987 | 6.625 | 6.250 | $323.28 | 6 Feet | Add to Order |
| KM-8988 | 6.687 | 6.312 | $326.38 | 6 Feet | Add to Order |
| KM-8989 | 6.750 | 6.375 | $329.55 | 6 Feet | Add to Order |
| KM-8990 | 6.812 | 6.437 | $332.65 | 6 Feet | Add to Order |
| KM-9009 | 6.875 | 6.500 | $335.83 | 3 Feet | Add to Order |
| KM-8983 | 6.937 | 6.562 | $338.92 | 3 Feet | Add to Order |
| KM-9010 | 7.000 | 6.625 | $342.10 | 3 Feet | Add to Order |
| KM-9011 | 7.062 | 6.687 | $345.20 | 3 Feet | Add to Order |
| KM-9021 | 7.125 | 6.750 | $348.38 | 3 Feet | Add to Order |
| KM-9013 | 7.187 | 6.812 | $351.48 | 3 Feet | Add to Order |
| KM-9006 | 7.250 | 6.875 | $354.65 | 3 Feet | Add to Order |
| KM-9015 | 7.312 | 6.937 | $357.75 | 3 Feet | Add to Order |
| KM-9016 | 7.375 | 7.000 | $360.93 | 3 Feet | Add to Order |
| KM-9017 | 7.437 | 7.062 | $364.05 | 3 Feet | Add to Order |
| KM-9018 | 7.500 | 7.125 | $367.20 | 3 Feet | Add to Order |
| KM-8794 | 7.562 | 7.187 | $370.33 | 3 Feet | Add to Order |
| KM-9019 | 7.625 | 7.250 | $373.47 | 3 Feet | Add to Order |
| KM-8798 | 7.687 | 7.312 | $376.60 | 3 Feet | Add to Order |
| KM-8799 | 7.750 | 7.375 | $379.75 | 3 Feet | Add to Order |
| KM-8800 | 7.812 | 7.437 | $382.88 | 3 Feet | Add to Order |
| KM-8801 | 7.875 | 7.500 | $386.03 | 3 Feet | Add to Order |
| KM-8802 | 7.937 | 7.562 | $389.15 | 3 Feet | Add to Order |
| KM-8803 | 8.000 | 7.625 | $392.30 | 3 Feet | Add to Order |
| KM-8815 | 8.062 | 7.687 | $395.42 | 3 Feet | Add to Order |
| KM-8805 | 8.125 | 7.750 | $398.58 | 3 Feet | Add to Order |
| KM-8796 | 8.187 | 7.812 | $401.70 | 3 Feet | Add to Order |
| KM-8807 | 8.250 | 7.875 | $404.88 | 3 Feet | Add to Order |
| KM-8808 | 8.312 | 7.937 | $407.98 | 3 Feet | Add to Order |
| KM-8809 | 8.375 | 8.000 | $411.15 | 3 Feet | Add to Order |
| KM-8811 | 8.500 | 8.125 | $417.43 | 3 Feet | Add to Order |
| KM-8812 | 8.562 | 8.187 | $420.53 | 3 Feet | Add to Order |
| KM-8813 | 8.625 | 8.250 | $423.70 | 3 Feet | Add to Order |
| KM-8814 | 8.687 | 8.312 | $426.80 | 3 Feet | Add to Order |
| KM-8786 | 8.750 | 8.375 | $429.98 | 3 Feet | Add to Order |
| KM-8784 | 8.812 | 8.437 | $433.08 | 3 Feet | Add to Order |
| KM-8804 | 8.875 | 8.500 | $436.25 | 3 Feet | Add to Order |
| KM-8778 | 8.937 | 8.562 | $439.35 | 3 Feet | Add to Order |
| KM-8779 | 9.000 | 8.625 | $442.53 | 3 Feet | Add to Order |
| KM-8780 | 9.062 | 8.687 | $445.65 | 3 Feet | Add to Order |
| KM-8781 | 9.125 | 8.750 | $448.80 | 3 Feet | Add to Order |
| KM-8782 | 9.187 | 8.812 | $451.93 | 3 Feet | Add to Order |
| KM-8783 | 9.250 | 8.875 | $455.08 | 3 Feet | Add to Order |
| KM-8795 | 9.312 | 8.937 | $458.20 | 3 Feet | Add to Order |
| KM-8785 | 9.375 | 9.000 | $461.35 | 3 Feet | Add to Order |
| KM-8776 | 9.437 | 9.062 | $464.47 | 3 Feet | Add to Order |
| KM-8787 | 9.500 | 9.125 | $467.63 | 3 Feet | Add to Order |
| KM-8788 | 9.562 | 9.187 | $470.75 | 3 Feet | Add to Order |
| KM-8789 | 9.625 | 9.250 | $473.90 | 3 Feet | Add to Order |
| KM-8790 | 9.687 | 9.312 | $477.03 | 3 Feet | Add to Order |
| KM-8791 | 9.750 | 9.375 | $480.17 | 3 Feet | Add to Order |
| KM-8792 | 9.812 | 9.437 | $483.30 | 3 Feet | Add to Order |
| KM-8793 | 9.875 | 9.500 | $486.48 | 3 Feet | Add to Order |
| KM-8817 | 9.937 | 9.562 | $489.58 | 3 Feet | Add to Order |
| KM-8777 | 10.000 | 9.625 | $492.75 | 3 Feet | Add to Order |
| KM-8806 | 10.062 | 9.687 | $495.85 | 3 Feet | Add to Order |
| KM-8837 | 10.125 | 9.750 | $499.03 | 3 Feet | Add to Order |
| KM-8838 | 10.187 | 9.812 | $502.13 | 3 Feet | Add to Order |
| KM-8839 | 10.250 | 9.875 | $505.30 | 3 Feet | Add to Order |
| KM-8840 | 10.312 | 9.937 | $508.40 | 3 Feet | Add to Order |
| KM-8991 | 10.375 | 10.000 | $511.58 | 3 Feet | Add to Order |
| KM-9014 | 10.437 | 10.062 | $514.68 | 3 Feet | Add to Order |
| KM-9012 | 10.500 | 10.125 | $517.85 | 3 Feet | Add to Order |
| KM-9004 | 10.562 | 10.187 | $520.95 | 3 Feet | Add to Order |
| KM-9003 | 10.625 | 10.250 | $524.13 | 3 Feet | Add to Order |
| KM-8836 | 10.687 | 10.312 | $527.25 | 3 Feet | Add to Order |
| KM-9002 | 10.750 | 10.375 | $530.40 | 3 Feet | Add to Order |
| KM-9001 | 10.812 | 10.437 | $533.53 | 3 Feet | Add to Order |
| KM-9000 | 10.875 | 10.500 | $536.68 | 3 Feet | Add to Order |
| KM-8999 | 10.937 | 10.562 | $539.80 | 3 Feet | Add to Order |
| KM-8998 | 11.000 | 10.625 | $542.95 | 3 Feet | Add to Order |
| KM-8997 | 11.062 | 10.687 | $546.08 | 3 Feet | Add to Order |
| KM-8996 | 11.125 | 10.750 | $549.23 | 3 Feet | Add to Order |
| KM-8995 | 11.187 | 10.812 | $552.35 | 3 Feet | Add to Order |
| KM-8826 | 11.250 | 10.875 | $555.50 | 3 Feet | Add to Order |
| KM-8824 | 11.312 | 10.937 | $558.63 | 3 Feet | Add to Order |
| KM-8994 | 11.375 | 11.000 | $561.80 | 3 Feet | Add to Order |
| KM-8818 | 11.437 | 11.062 | $564.90 | 3 Feet | Add to Order |
| KM-8819 | 11.500 | 11.125 | $568.07 | 3 Feet | Add to Order |
| KM-8820 | 11.562 | 11.187 | $571.18 | 3 Feet | Add to Order |
| KM-8821 | 11.625 | 11.250 | $574.35 | 3 Feet | Add to Order |
| KM-8822 | 11.687 | 11.312 | $577.45 | 3 Feet | Add to Order |
| KM-8823 | 11.750 | 11.375 | $580.63 | 3 Feet | Add to Order |
| KM-8835 | 11.812 | 11.437 | $583.73 | 3 Feet | Add to Order |
| KM-8825 | 11.875 | 11.500 | $586.90 | 3 Feet | Add to Order |
| KM-8816 | 11.937 | 11.562 | $590.00 | 3 Feet | Add to Order |
| KM-8827 | 12.000 | 11.625 | $593.18 | 3 Feet | Add to Order |
| KM-8828 | 12.062 | 11.687 | $596.28 | 3 Feet | Add to Order |
| KM-8829 | 12.125 | 11.750 | $599.45 | 3 Feet | Add to Order |
| KM-8830 | 12.187 | 11.812 | $602.58 | 3 Feet | Add to Order |
| KM-8831 | 12.250 | 11.875 | $605.73 | 3 Feet | Add to Order |
| KM-8832 | 12.312 | 11.937 | $608.85 | 3 Feet | Add to Order |
| KM-8833 | 12.375 | 12.000 | $612.00 | 3 Feet | Add to Order |
| KM-8834 | 12.437 | 12.062 | $615.13 | 3 Feet | Add to Order |
| KM-8993 | 12.500 | 12.125 | $618.28 | 3 Feet | Add to Order |
| KM-8992 | 12.562 | 12.187 | $621.40 | 3 Feet | Add to Order |
| KM-9023 | 12.625 | 12.250 | $624.55 | 3 Feet | Add to Order |
| KM-9046 | 12.687 | 12.312 | $627.68 | 3 Feet | Add to Order |
| KM-9020 | 12.750 | 12.375 | $630.83 | 3 Feet | Add to Order |
| KM-9040 | 12.812 | 12.437 | $633.95 | 3 Feet | Add to Order |
| KM-9041 | 12.875 | 12.500 | $637.10 | 3 Feet | Add to Order |
| KM-9042 | 12.937 | 12.562 | $640.22 | 3 Feet | Add to Order |
| KM-8975 | 13.000 | 12.625 | $643.40 | 3 Feet | Add to Order |
| KM-8925 | 13.062 | 12.687 | $646.50 | 3 Feet | Add to Order |
| KM-9043 | 13.125 | 12.750 | $649.68 | 3 Feet | Add to Order |
| KM-8929 | 13.187 | 12.812 | $652.78 | 3 Feet | Add to Order |
| KM-8909 | 13.250 | 12.875 | $655.95 | 3 Feet | Add to Order |
| KM-8930 | 13.312 | 12.937 | $659.05 | 3 Feet | Add to Order |
| KM-8931 | 13.375 | 13.000 | $662.22 | 3 Feet | Add to Order |
| KM-8932 | 13.437 | 13.062 | $665.33 | 3 Feet | Add to Order |
| KM-8933 | 13.500 | 13.125 | $668.50 | 3 Feet | Add to Order |
| KM-8943 | 13.562 | 13.187 | $671.60 | 3 Feet | Add to Order |
| KM-8935 | 13.625 | 13.250 | $674.78 | 3 Feet | Add to Order |
| KM-8910 | 13.687 | 13.312 | $677.88 | 3 Feet | Add to Order |
| KM-8927 | 13.750 | 13.375 | $681.05 | 3 Feet | Add to Order |
| KM-8937 | 13.812 | 13.437 | $684.18 | 3 Feet | Add to Order |
| KM-8938 | 13.875 | 13.500 | $687.33 | 3 Feet | Add to Order |
| KM-8939 | 13.937 | 13.562 | $690.45 | 3 Feet | Add to Order |
| KM-8940 | 14.000 | 13.625 | $693.60 | 3 Feet | Add to Order |
| KM-8941 | 14.062 | 13.687 | $696.73 | 3 Feet | Add to Order |
| KM-8919 | 14.125 | 13.750 | $699.88 | 3 Feet | Add to Order |
| KM-8936 | 14.187 | 13.812 | $703.00 | 3 Feet | Add to Order |
| KM-8934 | 14.250 | 13.875 | $706.15 | 3 Feet | Add to Order |
| KM-8912 | 14.250 | 13.875 | $706.15 | 3 Feet | Add to Order |
| KM-8913 | 14.312 | 13.937 | $709.28 | 3 Feet | Add to Order |
| KM-8914 | 14.375 | 14.000 | $712.43 | 3 Feet | Add to Order |
| KM-8915 | 14.437 | 14.062 | $715.55 | 3 Feet | Add to Order |
| KM-8916 | 14.500 | 14.125 | $718.70 | 3 Feet | Add to Order |
| KM-8926 | 14.562 | 14.187 | $721.83 | 3 Feet | Add to Order |
| KM-8918 | 14.625 | 14.250 | $725.00 | 3 Feet | Add to Order |
| KM-8911 | 14.687 | 14.312 | $728.10 | 3 Feet | Add to Order |
| KM-8920 | 14.750 | 14.375 | $731.28 | 3 Feet | Add to Order |
| KM-8921 | 14.812 | 14.437 | $734.38 | 3 Feet | Add to Order |
| KM-8922 | 14.875 | 14.500 | $737.55 | 3 Feet | Add to Order |
| KM-8923 | 14.937 | 14.562 | $740.65 | 3 Feet | Add to Order |
| KM-8924 | 15.000 | 14.625 | $743.82 | 3 Feet | Add to Order |
| KM-8950 | 15.062 | 14.687 | $746.93 | 3 Feet | Add to Order |
| KM-8917 | 15.125 | 14.750 | $750.10 | 3 Feet | Add to Order |
| KM-8942 | 15.187 | 14.812 | $753.20 | 3 Feet | Add to Order |
| KM-8961 | 15.250 | 14.875 | $756.38 | 3 Feet | Add to Order |
| KM-8962 | 15.312 | 14.937 | $759.48 | 3 Feet | Add to Order |
| KM-8963 | 15.375 | 15.000 | $762.65 | 3 Feet | Add to Order |
| KM-8964 | 15.437 | 15.062 | $765.78 | 3 Feet | Add to Order |
| KM-8965 | 15.500 | 15.125 | $768.93 | 3 Feet | Add to Order |
| KM-8966 | 15.562 | 15.187 | $772.05 | 3 Feet | Add to Order |
| KM-8976 | 15.625 | 15.250 | $775.20 | 3 Feet | Add to Order |
| KM-8968 | 15.687 | 15.312 | $778.32 | 3 Feet | Add to Order |
| KM-8901 | 15.750 | 15.375 | $781.47 | 3 Feet | Add to Order |
| KM-8856 | 15.812 | 15.437 | $784.60 | 3 Feet | Add to Order |
| KM-8960 | 15.875 | 15.500 | $787.75 | 3 Feet | Add to Order |
| KM-8860 | 15.937 | 15.562 | $790.88 | 3 Feet | Add to Order |
| KM-8861 | 16.000 | 15.625 | $794.03 | 3 Feet | Add to Order |
| KM-8862 | 16.062 | 15.687 | $797.15 | 3 Feet | Add to Order |
| KM-8863 | 16.125 | 15.750 | $800.30 | 3 Feet | Add to Order |
| KM-8864 | 16.187 | 15.812 | $803.43 | 3 Feet | Add to Order |
| KM-8874 | 16.250 | 15.875 | $806.60 | 3 Feet | Add to Order |
| KM-8866 | 16.312 | 15.937 | $809.70 | 3 Feet | Add to Order |
| KM-8858 | 16.375 | 16.000 | $812.88 | 3 Feet | Add to Order |
| KM-8868 | 16.437 | 16.062 | $815.97 | 3 Feet | Add to Order |
| KM-8869 | 16.500 | 16.125 | $819.15 | 3 Feet | Add to Order |
| KM-8870 | 16.562 | 16.187 | $822.25 | 3 Feet | Add to Order |
| KM-8871 | 16.625 | 16.250 | $825.43 | 3 Feet | Add to Order |
| KM-8872 | 16.687 | 16.312 | $828.53 | 3 Feet | Add to Order |
| KM-8873 | 16.750 | 16.375 | $831.70 | 3 Feet | Add to Order |
| KM-8850 | 16.812 | 16.437 | $834.80 | 3 Feet | Add to Order |
| KM-8848 | 16.875 | 16.500 | $837.98 | 3 Feet | Add to Order |
| KM-8865 | 16.937 | 16.562 | $841.08 | 3 Feet | Add to Order |
| KM-8843 | 17.000 | 16.625 | $844.25 | 3 Feet | Add to Order |
| KM-8844 | 17.062 | 16.687 | $847.38 | 3 Feet | Add to Order |
| KM-8845 | 17.125 | 16.750 | $850.53 | 3 Feet | Add to Order |
| KM-8846 | 17.187 | 16.812 | $853.65 | 3 Feet | Add to Order |
| KM-8847 | 17.250 | 16.875 | $856.80 | 3 Feet | Add to Order |
| KM-8857 | 17.312 | 16.937 | $859.93 | 3 Feet | Add to Order |
| KM-8849 | 17.375 | 17.000 | $863.08 | 3 Feet | Add to Order |
| KM-8841 | 17.437 | 17.062 | $866.20 | 3 Feet | Add to Order |
| KM-8851 | 17.500 | 17.125 | $869.35 | 3 Feet | Add to Order |
| KM-8852 | 17.562 | 17.187 | $872.48 | 3 Feet | Add to Order |
| KM-8853 | 17.625 | 17.250 | $875.63 | 3 Feet | Add to Order |
| KM-8854 | 17.687 | 17.312 | $878.75 | 3 Feet | Add to Order |
| KM-8855 | 17.750 | 17.375 | $881.90 | 3 Feet | Add to Order |
| KM-8876 | 17.812 | 17.437 | $885.03 | 3 Feet | Add to Order |
| KM-8842 | 17.875 | 17.500 | $888.20 | 3 Feet | Add to Order |
| KM-8867 | 17.937 | 17.562 | $891.30 | 3 Feet | Add to Order |
| KM-8893 | 18.000 | 17.625 | $894.48 | 3 Feet | Add to Order |
| KM-8894 | 18.062 | 17.687 | $897.57 | 3 Feet | Add to Order |
| KM-8895 | 18.125 | 17.750 | $900.75 | 3 Feet | Add to Order |
| KM-8896 | 18.187 | 17.812 | $903.85 | 3 Feet | Add to Order |
| KM-8897 | 18.250 | 17.875 | $907.03 | 3 Feet | Add to Order |
| KM-8898 | 18.312 | 17.937 | $910.13 | 3 Feet | Add to Order |
| KM-8908 | 18.375 | 18.000 | $913.30 | 3 Feet | Add to Order |
| KM-8900 | 18.437 | 18.062 | $916.40 | 3 Feet | Add to Order |
| KM-8892 | 18.500 | 18.125 | $919.57 | 3 Feet | Add to Order |
| KM-8902 | 18.562 | 18.187 | $922.68 | 3 Feet | Add to Order |
| KM-8903 | 18.625 | 18.250 | $925.85 | 3 Feet | Add to Order |
| KM-8904 | 18.687 | 18.312 | $928.97 | 3 Feet | Add to Order |
| KM-8905 | 18.750 | 18.375 | $932.13 | 3 Feet | Add to Order |
| KM-8906 | 18.812 | 18.437 | $935.25 | 3 Feet | Add to Order |
| KM-8907 | 18.875 | 18.500 | $938.40 | 3 Feet | Add to Order |
| KM-8884 | 18.937 | 18.562 | $941.53 | 3 Feet | Add to Order |
| KM-8882 | 19.000 | 18.625 | $944.68 | 3 Feet | Add to Order |
| KM-8899 | 19.062 | 18.687 | $947.80 | 3 Feet | Add to Order |
| KM-8877 | 19.125 | 18.750 | $950.95 | 3 Feet | Add to Order |
| KM-8878 | 19.187 | 18.812 | $954.08 | 3 Feet | Add to Order |
| KM-8879 | 19.250 | 18.875 | $957.22 | 3 Feet | Add to Order |
| KM-8880 | 19.312 | 18.937 | $960.35 | 3 Feet | Add to Order |
| KM-8881 | 19.375 | 19.000 | $963.53 | 3 Feet | Add to Order |
| KM-8891 | 19.437 | 19.062 | $966.63 | 3 Feet | Add to Order |
| KM-8883 | 19.500 | 19.125 | $969.80 | 3 Feet | Add to Order |
| KM-8875 | 19.562 | 19.187 | $972.90 | 3 Feet | Add to Order |
| KM-8885 | 19.625 | 19.250 | $976.08 | 3 Feet | Add to Order |
| KM-8886 | 19.687 | 19.312 | $979.18 | 3 Feet | Add to Order |
| KM-8887 | 19.750 | 19.375 | $982.35 | 3 Feet | Add to Order |
| KM-8888 | 19.812 | 19.437 | $985.45 | 3 Feet | Add to Order |
| KM-8889 | 19.875 | 19.500 | $988.63 | 3 Feet | Add to Order |
| KM-8970 | 19.937 | 19.562 | $991.73 | 3 Feet | Add to Order |
| KM-9265 | 20.000 | 19.625 | $994.90 | 3 Feet | Add to Order |
| Rev. 08-22, 04-22, 11-21, 06-21 | |||||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
