G11 Glass Reinforced Tubes
- .125" Wall Thickness
G11 Glass Reinforced Tubes
(yellow green to amber)
This grade is similar to G10/FR4, with the addition of a higher operating
temperature and some improved mechanical strength at elevated temperatures.
The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)
G11 Tubes Technical Data Sheet
G11 Tubes Chemical Resistance Chart
Tubes are made in random lengths between 30" - 36".
Our pricing and minimums are based on the 36".
Tubes can also be made in 42" to 48" random lengths for the same pricing.
Measured lengths of 36"±1" and 48"±1" are also available via manual quote.
| G11 Tubes 1/8" Wall Thickness | |||||
| Part # | OD (in.) | ID (in.) | Price Per Foot | Minimum | Order Online |
|---|---|---|---|---|---|
| KM-1482 | 0.437 | 0.187 | $35.43 | 30 Feet | Add to Order |
| KM-1486 | 0.500 | 0.250 | $38.50 | 27 Feet | Add to Order |
| KM-1490 | 0.562 | 0.312 | $41.57 | 27 Feet | Add to Order |
| KM-1494 | 0.625 | 0.375 | $44.65 | 24 Feet | Add to Order |
| KM-1498 | 0.687 | 0.437 | $47.73 | 21 Feet | Add to Order |
| KM-1502 | 0.750 | 0.500 | $50.80 | 21 Feet | Add to Order |
| KM-1507 | 0.812 | 0.562 | $53.88 | 21 Feet | Add to Order |
| KM-1513 | 0.875 | 0.625 | $39.13 | 27 Feet | Add to Order |
| KM-1518 | 0.937 | 0.687 | $41.22 | 27 Feet | Add to Order |
| KM-10199 | 1.000 | 0.750 | $36.25 | 30 Feet | Add to Order |
| KM-10221 | 1.062 | 0.812 | $45.45 | 24 Feet | Add to Order |
| KM-1518K | 1.125 | 0.875 | $47.58 | 24 Feet | Add to Order |
| KM-10206 | 1.187 | 0.937 | $49.68 | 21 Feet | Add to Order |
| KM-1524 | 1.250 | 1.000 | $51.80 | 21 Feet | Add to Order |
| KM-10227 | 1.312 | 1.062 | $53.90 | 21 Feet | Add to Order |
| KM-9990 | 1.375 | 1.125 | $56.03 | 18 Feet | Add to Order |
| KM-10226 | 1.437 | 1.187 | $58.13 | 18 Feet | Add to Order |
| KM-1528 | 1.500 | 1.250 | $60.25 | 18 Feet | Add to Order |
| KM-10224 | 1.562 | 1.312 | $62.35 | 18 Feet | Add to Order |
| KM-10214 | 1.625 | 1.375 | $64.48 | 18 Feet | Add to Order |
| KM-10222 | 1.687 | 1.437 | $66.58 | 18 Feet | Add to Order |
| KM-1533 | 1.750 | 1.500 | $68.70 | 15 Feet | Add to Order |
| KM-10000 | 1.812 | 1.562 | $70.80 | 15 Feet | Add to Order |
| KM-9989 | 1.875 | 1.625 | $72.93 | 15 Feet | Add to Order |
| KM-9998 | 1.937 | 1.687 | $75.03 | 15 Feet | Add to Order |
| KM-1538 | 2.000 | 1.750 | $77.15 | 15 Feet | Add to Order |
| KM-9996 | 2.062 | 1.812 | $79.25 | 15 Feet | Add to Order |
| KM-9995 | 2.125 | 1.875 | $81.38 | 15 Feet | Add to Order |
| KM-9994 | 2.187 | 1.937 | $83.48 | 12 Feet | Add to Order |
| KM-1543 | 2.250 | 2.000 | $85.60 | 12 Feet | Add to Order |
| KM-9992 | 2.312 | 2.062 | $87.70 | 12 Feet | Add to Order |
| KM-9991 | 2.375 | 2.125 | $89.83 | 12 Feet | Add to Order |
| KM-10219 | 2.437 | 2.187 | $91.93 | 12 Feet | Add to Order |
| KM-1548 | 2.500 | 2.250 | $94.08 | 12 Feet | Add to Order |
| KM-9999 | 2.562 | 2.312 | $96.15 | 12 Feet | Add to Order |
| KM-10218 | 2.625 | 2.375 | $98.30 | 12 Feet | Add to Order |
| KM-10217 | 2.687 | 2.437 | $100.40 | 12 Feet | Add to Order |
| KM-1553 | 2.750 | 2.500 | $102.52 | 12 Feet | Add to Order |
| KM-10113 | 2.812 | 2.562 | $104.63 | 12 Feet | Add to Order |
| KM-10262 | 2.875 | 2.625 | $106.75 | 12 Feet | Add to Order |
| KM-10149 | 2.937 | 2.687 | $108.85 | 12 Feet | Add to Order |
| KM-1558 | 3.000 | 2.750 | $110.98 | 12 Feet | Add to Order |
| KM-10046 | 3.062 | 2.812 | $113.07 | 9 Feet | Add to Order |
| KM-10045 | 3.125 | 2.875 | $115.20 | 9 Feet | Add to Order |
| KM-10044 | 3.187 | 2.937 | $117.30 | 9 Feet | Add to Order |
| KM-1562 | 3.250 | 3.000 | $119.43 | 9 Feet | Add to Order |
| KM-10042 | 3.312 | 3.062 | $121.53 | 9 Feet | Add to Order |
| KM-10033 | 3.375 | 3.125 | $123.65 | 9 Feet | Add to Order |
| KM-10508 | 3.437 | 3.187 | $125.75 | 9 Feet | Add to Order |
| KM-1567 | 3.500 | 3.250 | $127.88 | 9 Feet | Add to Order |
| KM-10611 | 3.562 | 3.312 | $129.98 | 9 Feet | Add to Order |
| KM-10048 | 3.625 | 3.375 | $132.10 | 9 Feet | Add to Order |
| KM-10038 | 3.687 | 3.437 | $134.20 | 9 Feet | Add to Order |
| KM-1572 | 3.750 | 3.500 | $136.33 | 9 Feet | Add to Order |
| KM-10036 | 3.812 | 3.562 | $138.42 | 9 Feet | Add to Order |
| KM-10035 | 3.875 | 3.625 | $140.55 | 9 Feet | Add to Order |
| KM-10034 | 3.937 | 3.687 | $142.65 | 9 Feet | Add to Order |
| KM-1577 | 4.000 | 3.750 | $144.80 | 9 Feet | Add to Order |
| KM-10058 | 4.062 | 3.812 | $146.88 | 9 Feet | Add to Order |
| KM-10041 | 4.125 | 3.875 | $149.03 | 9 Feet | Add to Order |
| KM-10063 | 4.187 | 3.937 | $151.10 | 9 Feet | Add to Order |
| KM-1582 | 4.250 | 4.000 | $153.25 | 9 Feet | Add to Order |
| KM-10061 | 4.312 | 4.062 | $155.35 | 9 Feet | Add to Order |
| KM-10060 | 4.375 | 4.125 | $157.48 | 9 Feet | Add to Order |
| KM-10059 | 4.437 | 4.187 | $159.58 | 9 Feet | Add to Order |
| KM-10049 | 4.500 | 4.250 | $161.70 | 9 Feet | Add to Order |
| KM-10057 | 4.562 | 4.312 | $163.80 | 9 Feet | Add to Order |
| KM-10065 | 4.625 | 4.375 | $165.93 | 9 Feet | Add to Order |
| KM-10055 | 4.687 | 4.437 | $168.02 | 6 Feet | Add to Order |
| KM-1587 | 4.750 | 4.500 | $170.15 | 6 Feet | Add to Order |
| KM-10053 | 4.812 | 4.562 | $172.25 | 6 Feet | Add to Order |
| KM-10052 | 4.875 | 4.625 | $174.38 | 6 Feet | Add to Order |

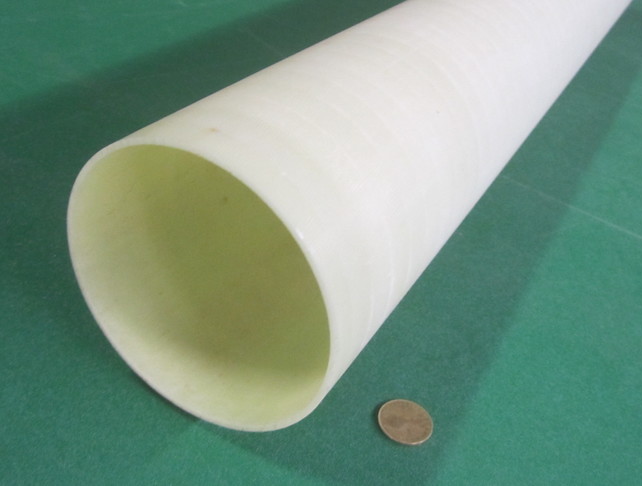

| KM-10051 | 4.937 | 4.687 | $176.48 | 6 Feet | Add to Order |
| KM-10025 | 5.000 | 4.750 | $178.60 | 6 Feet | Add to Order |

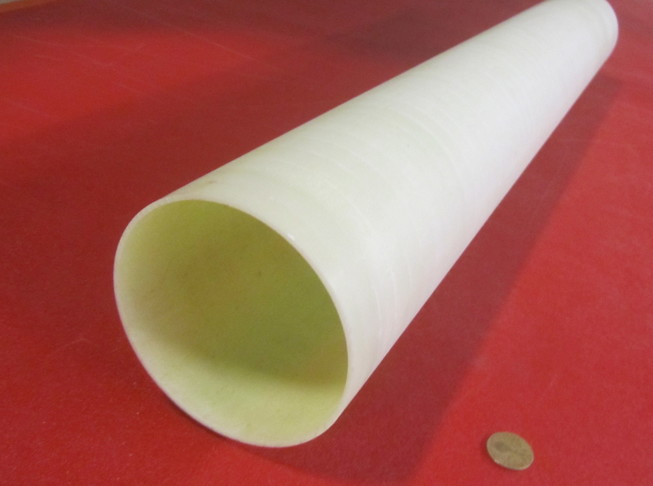

| KM-10064 | 5.062 | 4.812 | $180.70 | 6 Feet | Add to Order |
| KM-10039 | 5.125 | 4.875 | $200.75 | 6 Feet | Add to Order |

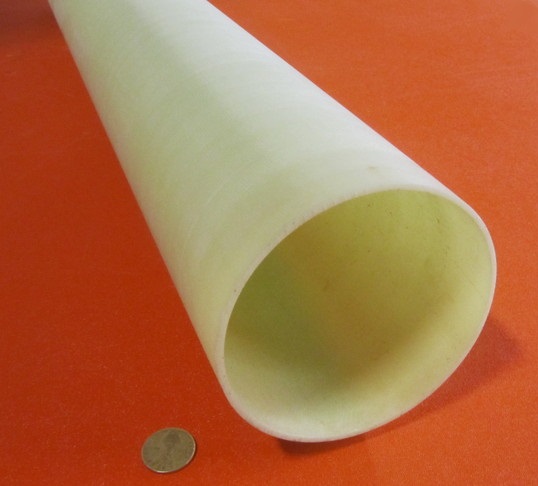

| KM-10015 | 5.187 | 4.937 | $203.05 | 6 Feet | Add to Order |
| KM-1592 | 5.250 | 5.000 | $205.40 | 6 Feet | Add to Order |
| KM-10013 | 5.312 | 5.062 | $207.70 | 6 Feet | Add to Order |
| KM-10012 | 5.375 | 5.125 | $210.05 | 6 Feet | Add to Order |
| KM-10011 | 5.437 | 5.187 | $212.35 | 6 Feet | Add to Order |
| KM-10010 | 5.500 | 5.250 | $214.68 | 6 Feet | Add to Order |
| KM-10001 | 5.562 | 5.312 | $216.98 | 6 Feet | Add to Order |
| KM-10008 | 5.625 | 5.375 | $219.33 | 6 Feet | Add to Order |
| KM-10016 | 5.687 | 5.437 | $221.63 | 6 Feet | Add to Order |
| KM-1598 | 5.750 | 5.500 | $223.98 | 6 Feet | Add to Order |
| KM-10005 | 5.812 | 5.562 | $226.28 | 6 Feet | Add to Order |
| KM-10004 | 5.875 | 5.625 | $228.60 | 6 Feet | Add to Order |
| KM-10003 | 5.937 | 5.687 | $230.90 | 6 Feet | Add to Order |
| KM-10023 | 6.000 | 5.750 | $233.25 | 6 Feet | Add to Order |
| KM-10009 | 6.125 | 5.875 | $237.90 | 6 Feet | Add to Order |
| KM-10031 | 6.187 | 5.937 | $240.20 | 6 Feet | Add to Order |
| KM-1604 | 6.250 | 6.000 | $242.53 | 6 Feet | Add to Order |
| KM-10029 | 6.312 | 6.062 | $227.83 | 6 Feet | Add to Order |
| KM-10028 | 6.375 | 6.125 | $230.15 | 6 Feet | Add to Order |
| KM-10027 | 6.437 | 6.187 | $232.45 | 6 Feet | Add to Order |
| KM-10026 | 6.500 | 6.250 | $234.75 | 6 Feet | Add to Order |
| KM-10017 | 6.562 | 6.312 | $237.05 | 6 Feet | Add to Order |
| KM-10024 | 6.625 | 6.375 | $239.35 | 6 Feet | Add to Order |
| KM-10032 | 6.687 | 6.437 | $241.65 | 6 Feet | Add to Order |
| KM-10022 | 6.750 | 6.500 | $243.98 | 6 Feet | Add to Order |
| KM-10021 | 6.812 | 6.562 | $246.25 | 6 Feet | Add to Order |
| KM-10020 | 6.875 | 6.625 | $248.58 | 6 Feet | Add to Order |
| KM-10019 | 6.937 | 6.687 | $250.85 | 6 Feet | Add to Order |
| KM-10018 | 7.000 | 6.750 | $253.17 | 6 Feet | Add to Order |
| KM-10080 | 7.062 | 6.812 | $255.45 | 6 Feet | Add to Order |
| KM-10130 | 7.125 | 6.875 | $257.78 | 6 Feet | Add to Order |
| KM-10050 | 7.187 | 6.937 | $260.05 | 6 Feet | Add to Order |
| KM-10112 | 7.250 | 7.000 | $262.38 | 6 Feet | Add to Order |
| KM-10111 | 7.312 | 7.062 | $264.65 | 6 Feet | Add to Order |
| KM-10110 | 7.375 | 7.125 | $266.98 | 6 Feet | Add to Order |
| KM-10109 | 7.437 | 7.187 | $269.28 | 6 Feet | Add to Order |
| KM-10108 | 7.500 | 7.250 | $271.58 | 6 Feet | Add to Order |
| KM-10099 | 7.562 | 7.312 | $273.88 | 6 Feet | Add to Order |
| KM-10106 | 7.625 | 7.375 | $276.18 | 6 Feet | Add to Order |
| KM-10114 | 7.687 | 7.437 | $278.48 | 6 Feet | Add to Order |
| KM-10104 | 7.750 | 7.500 | $280.80 | 6 Feet | Add to Order |
| KM-10103 | 7.812 | 7.562 | $283.08 | 6 Feet | Add to Order |
| KM-10102 | 7.875 | 7.625 | $285.40 | 6 Feet | Add to Order |
| KM-10101 | 7.937 | 7.687 | $287.67 | 6 Feet | Add to Order |
| KM-10100 | 8.000 | 7.750 | $290.00 | 6 Feet | Add to Order |
| KM-10122 | 8.062 | 7.812 | $292.28 | 6 Feet | Add to Order |
| KM-10124 | 8.125 | 7.875 | $294.60 | 6 Feet | Add to Order |
| KM-10107 | 8.187 | 7.937 | $296.88 | 6 Feet | Add to Order |
| KM-10129 | 8.250 | 8.000 | $299.20 | 6 Feet | Add to Order |
| KM-9968 | 8.375 | 8.125 | $303.80 | 6 Feet | Add to Order |
| KM-10127 | 8.437 | 8.187 | $306.10 | 6 Feet | Add to Order |
| KM-10126 | 8.500 | 8.250 | $308.40 | 6 Feet | Add to Order |
| KM-9892 | 8.562 | 8.312 | $310.70 | 6 Feet | Add to Order |
| KM-9891 | 8.625 | 8.375 | $313.00 | 6 Feet | Add to Order |
| KM-9890 | 8.687 | 8.437 | $315.30 | 6 Feet | Add to Order |
| KM-9889 | 8.750 | 8.500 | $317.63 | 6 Feet | Add to Order |
| KM-9888 | 8.812 | 8.562 | $319.90 | 6 Feet | Add to Order |
| KM-9641 | 8.875 | 8.625 | $322.22 | 6 Feet | Add to Order |
| KM-9887 | 8.937 | 8.687 | $324.50 | 6 Feet | Add to Order |
| KM-9781 | 9.000 | 8.750 | $326.83 | 6 Feet | Add to Order |
| KM-9780 | 9.062 | 8.812 | $329.10 | 6 Feet | Add to Order |
| KM-9779 | 9.125 | 8.875 | $331.42 | 6 Feet | Add to Order |
| KM-9778 | 9.187 | 8.937 | $333.70 | 3 Feet | Add to Order |
| KM-9777 | 9.250 | 9.000 | $336.03 | 3 Feet | Add to Order |
| KM-9776 | 9.312 | 9.062 | $338.30 | 3 Feet | Add to Order |
| KM-9775 | 9.375 | 9.125 | $340.63 | 3 Feet | Add to Order |
| KM-9773 | 9.500 | 9.250 | $345.23 | 3 Feet | Add to Order |
| KM-9774 | 9.437 | 9.187 | $342.92 | 3 Feet | Add to Order |
| KM-9760 | 9.562 | 9.312 | $347.53 | 3 Feet | Add to Order |
| KM-9771 | 9.625 | 9.375 | $349.83 | 3 Feet | Add to Order |
| KM-9783 | 9.687 | 9.437 | $352.13 | 3 Feet | Add to Order |
| KM-9769 | 9.750 | 9.500 | $354.45 | 3 Feet | Add to Order |
| KM-9768 | 9.812 | 9.562 | $356.73 | 3 Feet | Add to Order |
| KM-9767 | 9.875 | 9.625 | $359.05 | 3 Feet | Add to Order |
| KM-9766 | 9.937 | 9.687 | $361.33 | 3 Feet | Add to Order |
| KM-9765 | 10.000 | 9.750 | $363.65 | 3 Feet | Add to Order |
| KM-9764 | 10.062 | 9.812 | $365.93 | 3 Feet | Add to Order |
| KM-9763 | 10.125 | 9.875 | $368.25 | 3 Feet | Add to Order |
| KM-9762 | 10.187 | 9.937 | $370.53 | 3 Feet | Add to Order |
| KM-9794 | 10.250 | 10.000 | $372.85 | 3 Feet | Add to Order |
| KM-9770 | 10.312 | 10.062 | $375.13 | 3 Feet | Add to Order |
| KM-9772 | 10.375 | 10.125 | $377.45 | 3 Feet | Add to Order |
| KM-9806 | 10.437 | 10.187 | $379.72 | 3 Feet | Add to Order |
| KM-9805 | 10.500 | 10.250 | $382.05 | 3 Feet | Add to Order |
| KM-9804 | 10.562 | 10.312 | $384.35 | 3 Feet | Add to Order |
| KM-9803 | 10.625 | 10.375 | $386.65 | 3 Feet | Add to Order |
| KM-9802 | 10.687 | 10.437 | $388.95 | 3 Feet | Add to Order |
| KM-9801 | 10.750 | 10.500 | $391.28 | 3 Feet | Add to Order |
| KM-9800 | 10.812 | 10.562 | $393.55 | 3 Feet | Add to Order |
| KM-9799 | 10.875 | 10.625 | $395.88 | 3 Feet | Add to Order |
| KM-9798 | 10.937 | 10.687 | $398.15 | 3 Feet | Add to Order |
| KM-9797 | 11.000 | 10.750 | $400.48 | 3 Feet | Add to Order |
| KM-9784 | 11.062 | 10.812 | $402.75 | 3 Feet | Add to Order |
| KM-9795 | 11.125 | 10.875 | $405.08 | 3 Feet | Add to Order |
| KM-9807 | 11.187 | 10.937 | $407.35 | 3 Feet | Add to Order |
| KM-9793 | 11.250 | 11.000 | $409.68 | 3 Feet | Add to Order |
| KM-9792 | 11.312 | 11.062 | $411.95 | 3 Feet | Add to Order |
| KM-9791 | 11.375 | 11.125 | $414.28 | 3 Feet | Add to Order |
| KM-9790 | 11.437 | 11.187 | $416.55 | 3 Feet | Add to Order |
| KM-9789 | 11.500 | 11.250 | $418.88 | 3 Feet | Add to Order |
| KM-9788 | 11.562 | 11.312 | $421.18 | 3 Feet | Add to Order |
| KM-9787 | 11.625 | 11.375 | $423.47 | 3 Feet | Add to Order |
| KM-9785 | 11.750 | 11.500 | $428.10 | 3 Feet | Add to Order |
| KM-9748 | 11.812 | 11.562 | $430.38 | 3 Feet | Add to Order |
| KM-9713 | 11.875 | 11.625 | $432.70 | 3 Feet | Add to Order |
| KM-9761 | 11.937 | 11.687 | $434.98 | 3 Feet | Add to Order |
| KM-9733 | 12.000 | 11.750 | $437.30 | 3 Feet | Add to Order |
| KM-9732 | 12.062 | 11.812 | $439.58 | 3 Feet | Add to Order |
| KM-9731 | 12.125 | 11.875 | $441.90 | 3 Feet | Add to Order |
| KM-9730 | 12.187 | 11.937 | $444.17 | 3 Feet | Add to Order |
| KM-9729 | 12.250 | 12.000 | $446.50 | 3 Feet | Add to Order |
| KM-9728 | 12.312 | 12.062 | $448.78 | 3 Feet | Add to Order |
| KM-9727 | 12.375 | 12.125 | $451.10 | 3 Feet | Add to Order |
| KM-9726 | 12.437 | 12.187 | $453.38 | 3 Feet | Add to Order |
| KM-9725 | 12.500 | 12.250 | $455.70 | 3 Feet | Add to Order |
| KM-9712 | 12.562 | 12.312 | $458.00 | 3 Feet | Add to Order |
| KM-9723 | 12.625 | 12.375 | $460.30 | 3 Feet | Add to Order |
| KM-9735 | 12.687 | 12.437 | $462.60 | 3 Feet | Add to Order |
| KM-9716 | 12.750 | 12.500 | $464.93 | 3 Feet | Add to Order |
| KM-9715 | 12.812 | 12.562 | $467.20 | 3 Feet | Add to Order |
| KM-9714 | 12.875 | 12.625 | $469.53 | 3 Feet | Add to Order |
| KM-9746 | 12.937 | 12.687 | $471.80 | 3 Feet | Add to Order |
| KM-9722 | 13.000 | 12.750 | $474.13 | 3 Feet | Add to Order |
| KM-9724 | 13.062 | 12.812 | $476.40 | 3 Feet | Add to Order |
| KM-9758 | 13.125 | 12.875 | $478.73 | 3 Feet | Add to Order |
| KM-9757 | 13.187 | 12.937 | $481.00 | 3 Feet | Add to Order |
| KM-9756 | 13.250 | 13.000 | $483.33 | 3 Feet | Add to Order |
| KM-9755 | 13.312 | 13.062 | $485.60 | 3 Feet | Add to Order |
| KM-9754 | 13.375 | 13.125 | $487.92 | 3 Feet | Add to Order |
| KM-9753 | 13.437 | 13.187 | $490.20 | 3 Feet | Add to Order |
| KM-9752 | 13.500 | 13.250 | $492.53 | 3 Feet | Add to Order |
| KM-9751 | 13.562 | 13.312 | $494.83 | 3 Feet | Add to Order |
| KM-9750 | 13.625 | 13.375 | $497.13 | 3 Feet | Add to Order |
| KM-9749 | 13.687 | 13.437 | $499.43 | 3 Feet | Add to Order |
| KM-9736 | 13.750 | 13.500 | $501.75 | 3 Feet | Add to Order |
| KM-9747 | 13.812 | 13.562 | $504.03 | 3 Feet | Add to Order |
| KM-9759 | 13.875 | 13.625 | $506.35 | 3 Feet | Add to Order |
| KM-9745 | 13.937 | 13.687 | $508.63 | 3 Feet | Add to Order |
| KM-9744 | 14.000 | 13.750 | $510.95 | 3 Feet | Add to Order |
| KM-9743 | 14.062 | 13.812 | $513.23 | 3 Feet | Add to Order |
| KM-9742 | 14.125 | 13.875 | $515.55 | 3 Feet | Add to Order |
| KM-9741 | 14.187 | 13.937 | $517.83 | 3 Feet | Add to Order |
| KM-9740 | 14.250 | 14.000 | $520.15 | 3 Feet | Add to Order |
| KM-9739 | 14.312 | 14.062 | $522.43 | 3 Feet | Add to Order |
| KM-9738 | 14.375 | 14.125 | $524.75 | 3 Feet | Add to Order |
| KM-9830 | 14.437 | 14.187 | $527.03 | 3 Feet | Add to Order |
| KM-9734 | 14.500 | 14.250 | $529.35 | 3 Feet | Add to Order |
| KM-9796 | 14.562 | 14.312 | $531.65 | 3 Feet | Add to Order |
| KM-9886 | 14.625 | 14.375 | $533.95 | 3 Feet | Add to Order |
| KM-9875 | 14.687 | 14.437 | $536.25 | 3 Feet | Add to Order |
| KM-9884 | 14.750 | 14.500 | $538.58 | 3 Feet | Add to Order |
| KM-9893 | 14.812 | 14.562 | $540.85 | 3 Feet | Add to Order |
| KM-9882 | 14.875 | 14.625 | $543.18 | 3 Feet | Add to Order |
| KM-9881 | 14.937 | 14.687 | $545.45 | 3 Feet | Add to Order |
| KM-9880 | 15.000 | 14.750 | $547.78 | 3 Feet | Add to Order |
| KM-9879 | 15.062 | 14.812 | $550.05 | 3 Feet | Add to Order |
| KM-9878 | 15.125 | 14.875 | $552.38 | 3 Feet | Add to Order |
| KM-9877 | 15.187 | 14.937 | $554.65 | 3 Feet | Add to Order |
| KM-9902 | 15.250 | 15.000 | $556.98 | 3 Feet | Add to Order |
| KM-9883 | 15.312 | 15.062 | $559.25 | 3 Feet | Add to Order |
| KM-9885 | 15.375 | 15.125 | $561.58 | 3 Feet | Add to Order |
| KM-9438 | 15.437 | 15.187 | $563.85 | 3 Feet | Add to Order |
| KM-9911 | 15.500 | 15.250 | $566.18 | 3 Feet | Add to Order |
| KM-9910 | 15.562 | 15.312 | $568.47 | 3 Feet | Add to Order |
| KM-9909 | 15.625 | 15.375 | $570.78 | 3 Feet | Add to Order |
| KM-9908 | 15.687 | 15.437 | $573.07 | 3 Feet | Add to Order |
| KM-9907 | 15.750 | 15.500 | $575.40 | 3 Feet | Add to Order |
| KM-9906 | 15.812 | 15.562 | $577.68 | 3 Feet | Add to Order |
| KM-9905 | 15.875 | 15.625 | $580.00 | 3 Feet | Add to Order |
| KM-9894 | 15.937 | 15.687 | $582.28 | 3 Feet | Add to Order |
| KM-9903 | 16.000 | 15.750 | $584.60 | 3 Feet | Add to Order |
| KM-9912 | 16.062 | 15.812 | $586.88 | 3 Feet | Add to Order |
| KM-9901 | 16.125 | 15.875 | $589.20 | 3 Feet | Add to Order |
| KM-9900 | 16.187 | 15.937 | $591.48 | 3 Feet | Add to Order |
| KM-9899 | 16.250 | 16.000 | $593.80 | 3 Feet | Add to Order |
| KM-9898 | 16.312 | 16.062 | $596.08 | 3 Feet | Add to Order |
| KM-9897 | 16.375 | 16.125 | $598.40 | 3 Feet | Add to Order |
| KM-9896 | 16.437 | 16.187 | $600.68 | 3 Feet | Add to Order |
| KM-9873 | 16.500 | 16.250 | $603.00 | 3 Feet | Add to Order |
| KM-9904 | 16.562 | 16.312 | $605.30 | 3 Feet | Add to Order |
| KM-9876 | 16.625 | 16.375 | $607.60 | 3 Feet | Add to Order |
| KM-9854 | 16.687 | 16.437 | $609.90 | 3 Feet | Add to Order |
| KM-9853 | 16.750 | 16.500 | $612.20 | 3 Feet | Add to Order |
| KM-9852 | 16.812 | 16.562 | $614.50 | 3 Feet | Add to Order |
| KM-9851 | 16.875 | 16.625 | $616.82 | 3 Feet | Add to Order |
| KM-9850 | 16.937 | 16.687 | $619.10 | 3 Feet | Add to Order |
| KM-9849 | 17.000 | 16.750 | $621.43 | 3 Feet | Add to Order |
| KM-9848 | 17.062 | 16.812 | $623.70 | 3 Feet | Add to Order |
| KM-9838 | 17.125 | 16.875 | $626.03 | 3 Feet | Add to Order |
| KM-10944 | 17.187 | 16.937 | $628.30 | 3 Feet | Add to Order |
| KM-10943 | 17.250 | 17.000 | $630.63 | 3 Feet | Add to Order |
| KM-10942 | 17.312 | 17.062 | $632.90 | 3 Feet | Add to Order |
| KM-10941 | 17.375 | 17.125 | $635.23 | 3 Feet | Add to Order |
| KM-10930 | 17.500 | 17.250 | $639.83 | 3 Feet | Add to Order |
| KM-10938 | 17.562 | 17.312 | $642.13 | 3 Feet | Add to Order |
| KM-10946 | 17.625 | 17.375 | $644.43 | 3 Feet | Add to Order |
| KM-10936 | 17.687 | 17.437 | $646.73 | 3 Feet | Add to Order |
| KM-10935 | 17.750 | 17.500 | $649.03 | 3 Feet | Add to Order |
| KM-10933 | 17.875 | 17.625 | $653.65 | 3 Feet | Add to Order |
| KM-10932 | 17.937 | 17.687 | $655.93 | 3 Feet | Add to Order |
| KM-10931 | 18.000 | 17.750 | $658.25 | 3 Feet | Add to Order |
| KM-10905 | 18.062 | 17.812 | $660.53 | 3 Feet | Add to Order |
| KM-10880 | 18.125 | 17.875 | $662.85 | 3 Feet | Add to Order |
| KM-10914 | 18.187 | 17.937 | $665.13 | 3 Feet | Add to Order |
| KM-10893 | 18.250 | 18.000 | $667.45 | 3 Feet | Add to Order |
| KM-10892 | 18.312 | 18.062 | $669.72 | 3 Feet | Add to Order |
| KM-10891 | 18.375 | 18.125 | $672.05 | 3 Feet | Add to Order |
| KM-10890 | 18.437 | 18.187 | $674.33 | 3 Feet | Add to Order |
| KM-10889 | 18.500 | 18.250 | $676.65 | 3 Feet | Add to Order |
| KM-10879 | 18.562 | 18.312 | $678.95 | 3 Feet | Add to Order |
| KM-10887 | 18.625 | 18.375 | $681.25 | 3 Feet | Add to Order |
| KM-10895 | 18.687 | 18.437 | $683.55 | 3 Feet | Add to Order |
| KM-10885 | 18.750 | 18.500 | $685.85 | 3 Feet | Add to Order |
| KM-10884 | 18.812 | 18.562 | $688.15 | 3 Feet | Add to Order |
| KM-10883 | 18.875 | 18.625 | $690.48 | 3 Feet | Add to Order |
| KM-10882 | 18.937 | 18.687 | $692.75 | 3 Feet | Add to Order |
| KM-10881 | 19.000 | 18.750 | $695.07 | 3 Feet | Add to Order |
| KM-10903 | 19.062 | 18.812 | $697.35 | 3 Feet | Add to Order |
| KM-10886 | 19.125 | 18.875 | $699.68 | 3 Feet | Add to Order |
| KM-10888 | 19.187 | 18.937 | $701.95 | 3 Feet | Add to Order |
| KM-10911 | 19.250 | 19.000 | $704.28 | 3 Feet | Add to Order |
| KM-10910 | 19.312 | 19.062 | $706.55 | 3 Feet | Add to Order |
| KM-10909 | 19.375 | 19.125 | $708.88 | 3 Feet | Add to Order |
| KM-10908 | 19.437 | 19.187 | $711.15 | 3 Feet | Add to Order |
| KM-10907 | 19.500 | 19.250 | $713.47 | 3 Feet | Add to Order |
| KM-10906 | 19.562 | 19.312 | $715.78 | 3 Feet | Add to Order |
| KM-10896 | 19.625 | 19.375 | $718.08 | 3 Feet | Add to Order |
| KM-10904 | 19.687 | 19.437 | $720.38 | 3 Feet | Add to Order |
| KM-10912 | 19.750 | 19.500 | $722.68 | 3 Feet | Add to Order |
| KM-10902 | 19.812 | 19.562 | $724.98 | 3 Feet | Add to Order |
| KM-10901 | 19.875 | 19.625 | $727.30 | 3 Feet | Add to Order |
| KM-10900 | 19.937 | 19.687 | $729.57 | 3 Feet | Add to Order |
| KM-10899 | 20.000 | 19.750 | $731.90 | 3 Feet | Add to Order |
| Rev. 08-22, 06-22, 04-22, 11-21 | |||||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
