G11 Glass Reinforced Tubes- .031" Wall Thickness
G11 Glass Reinforced Tubes
(yellow green to amber)
This grade is similar to G10/FR4, with the addition of a higher operating
temperature and some improved mechanical strength at elevated temperatures.
The main difference between NEMA Grades G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be safely substituted when G11 is called for, while G11 can never be substituted where FR5 is called for. (NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)
G11 Tubes Technical Data Sheet
G11 Tubes Chemical Resistance Chart
Tubes are made in random lengths between 30" - 36".
Our pricing and minimums are based on the 36".
Tubes can also be made in 42" to 48" random lengths for the same pricing.
Measured lengths of 36"±1" and 48"±1" are also available via manual quote.

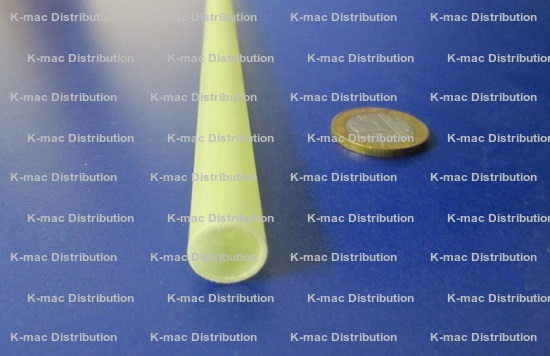

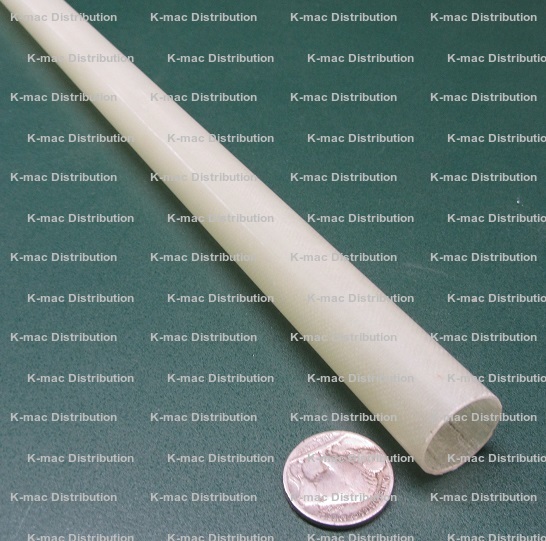

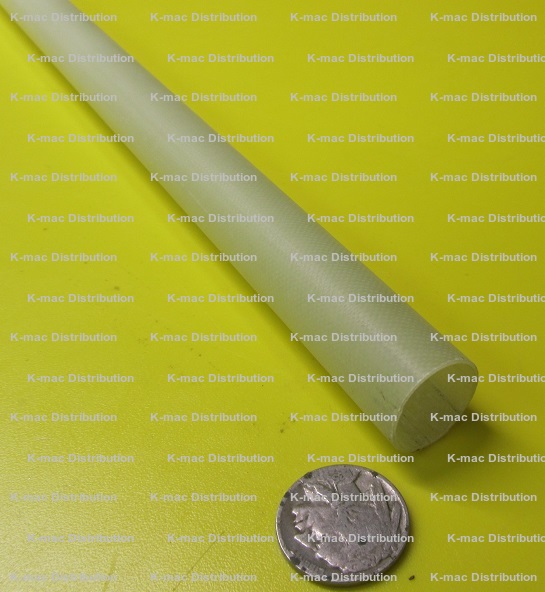

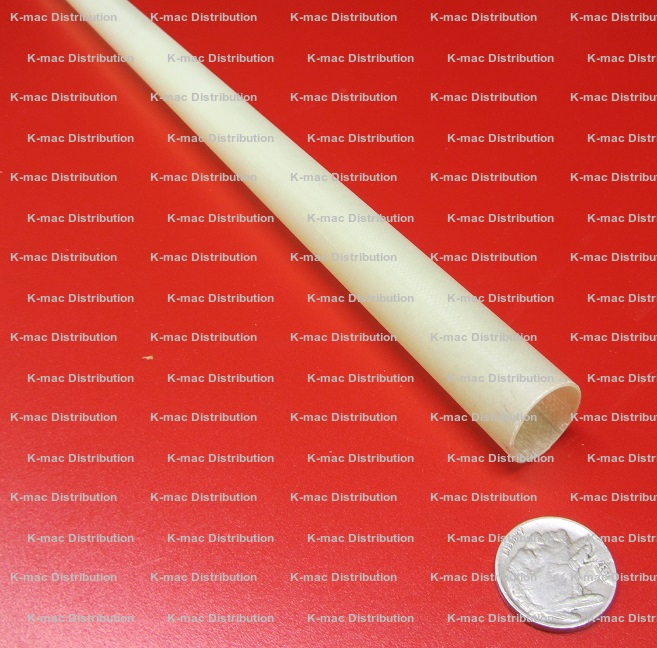

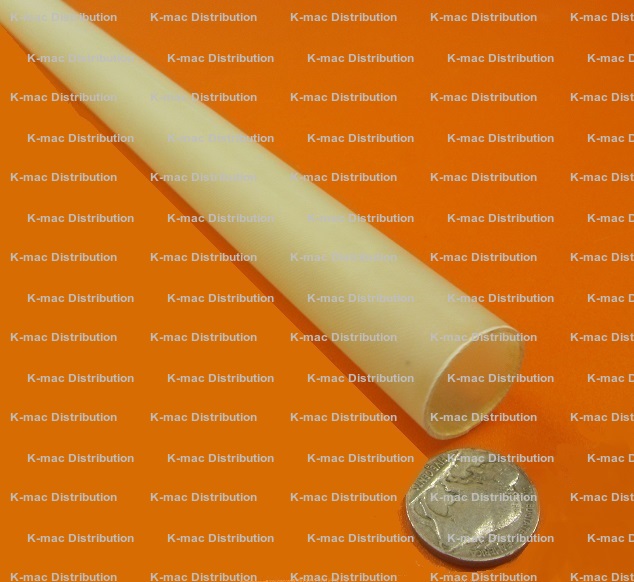

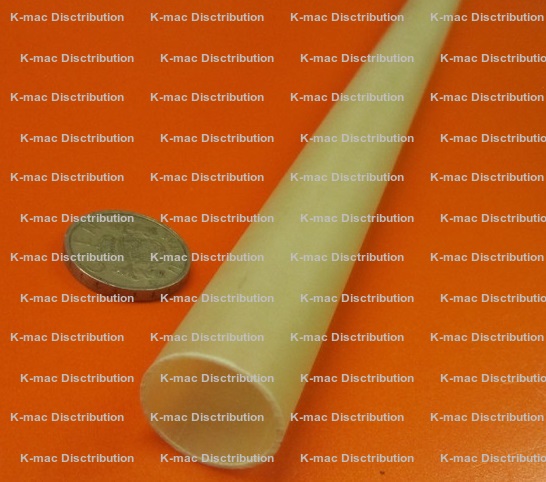

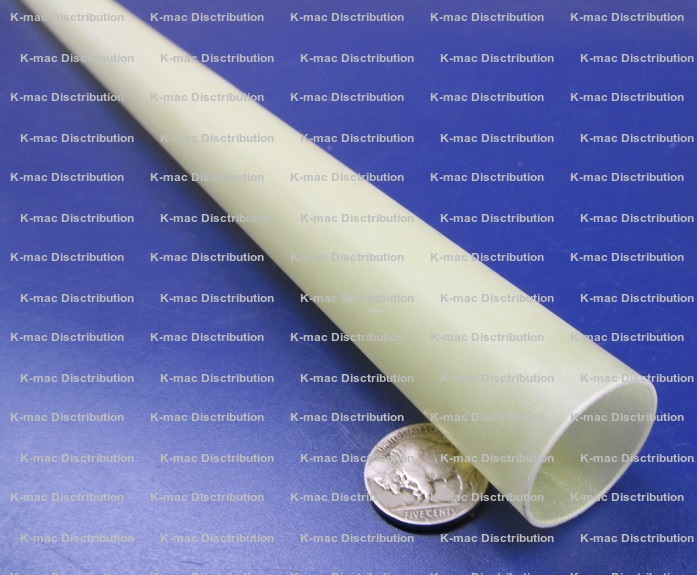

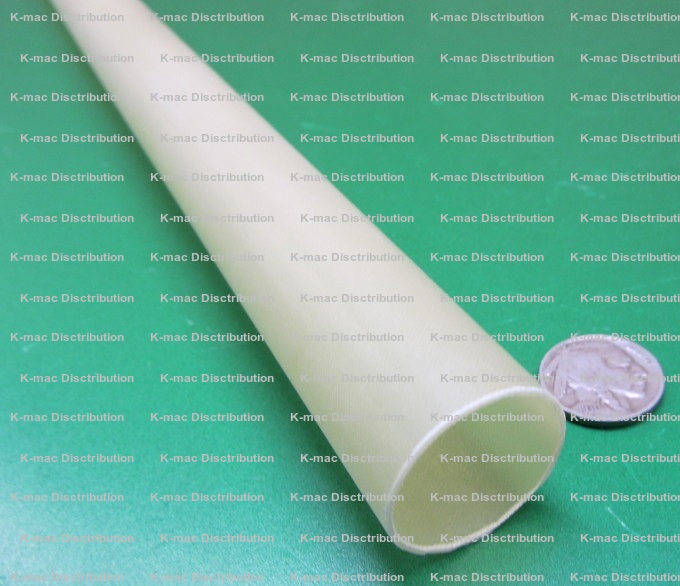

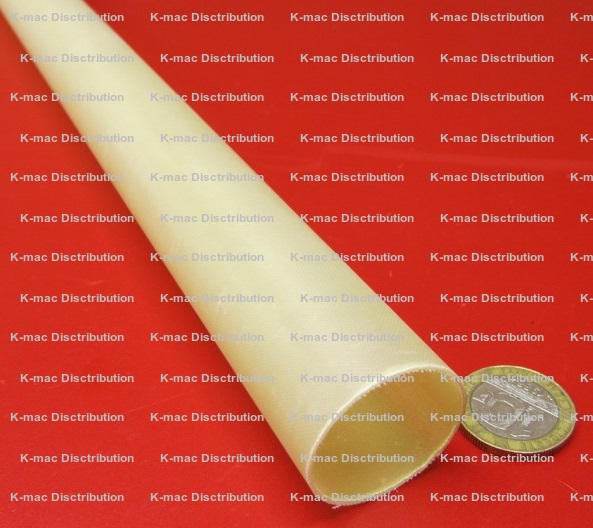

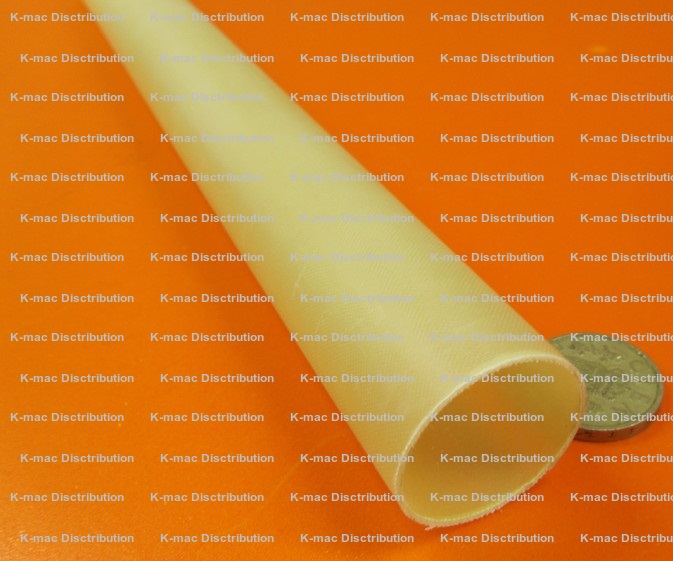

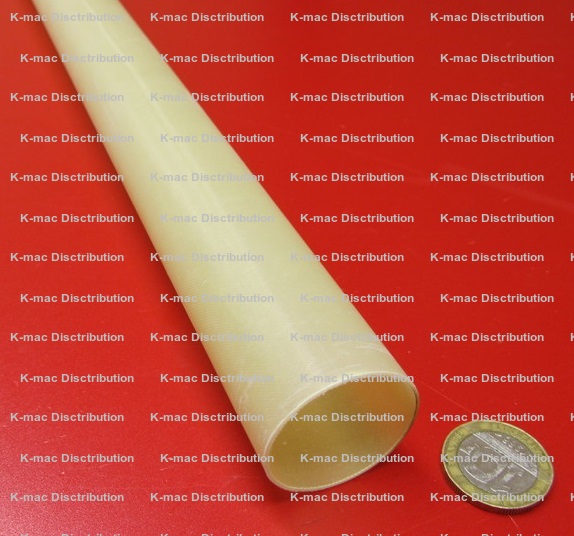

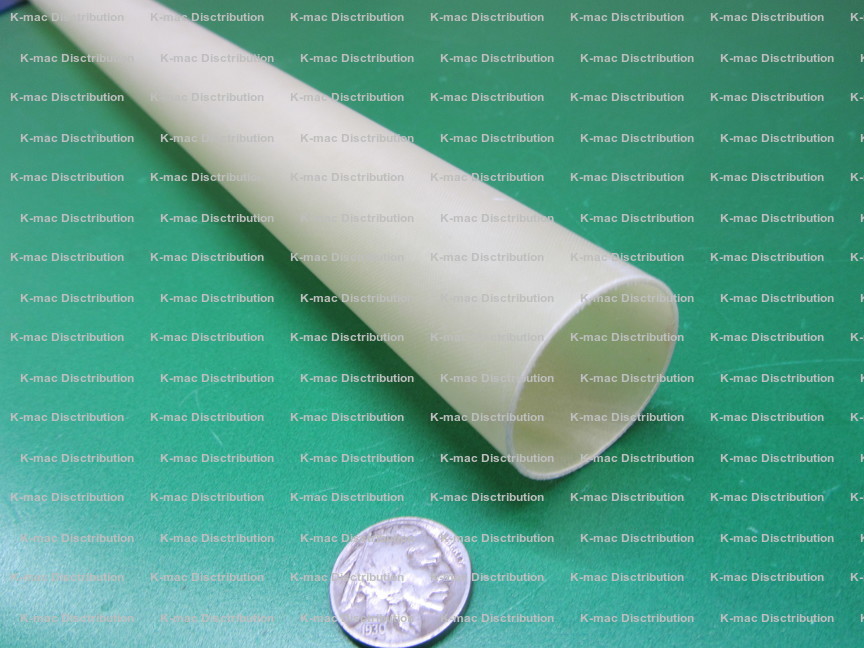

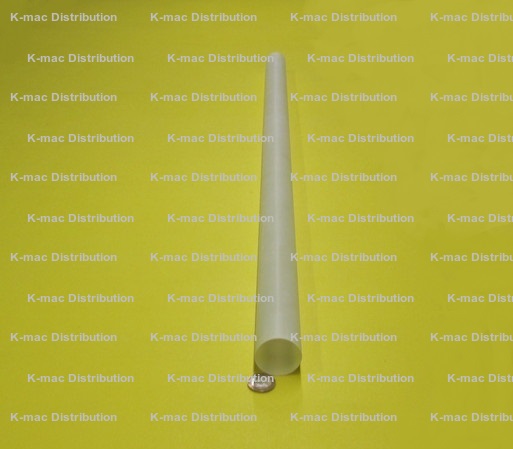

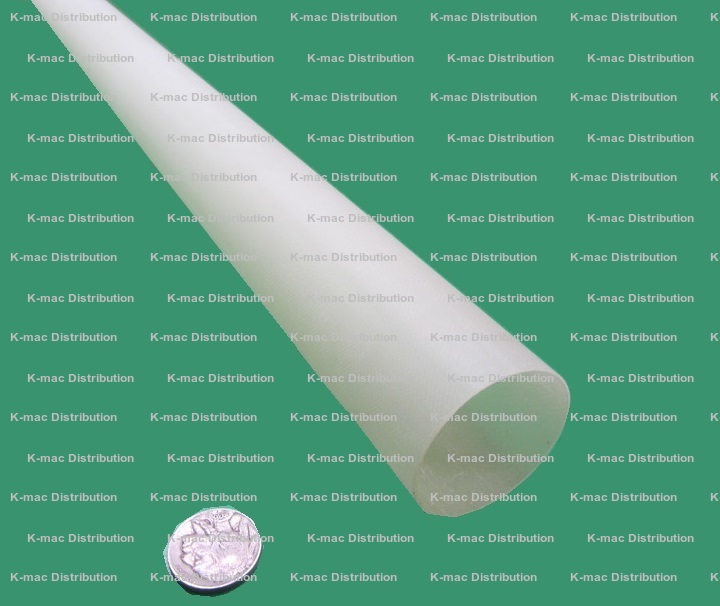

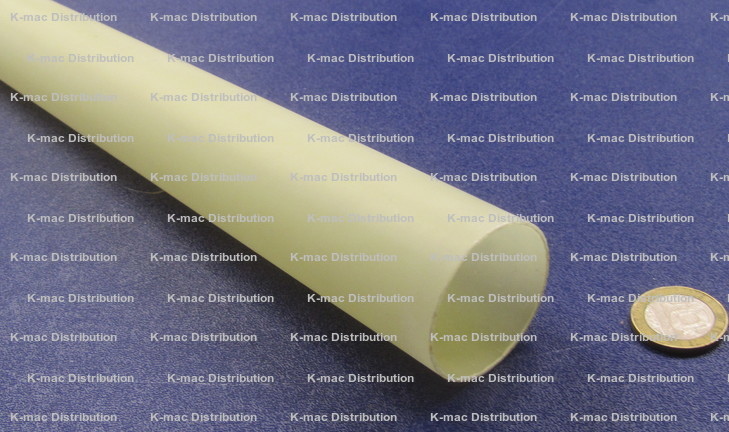

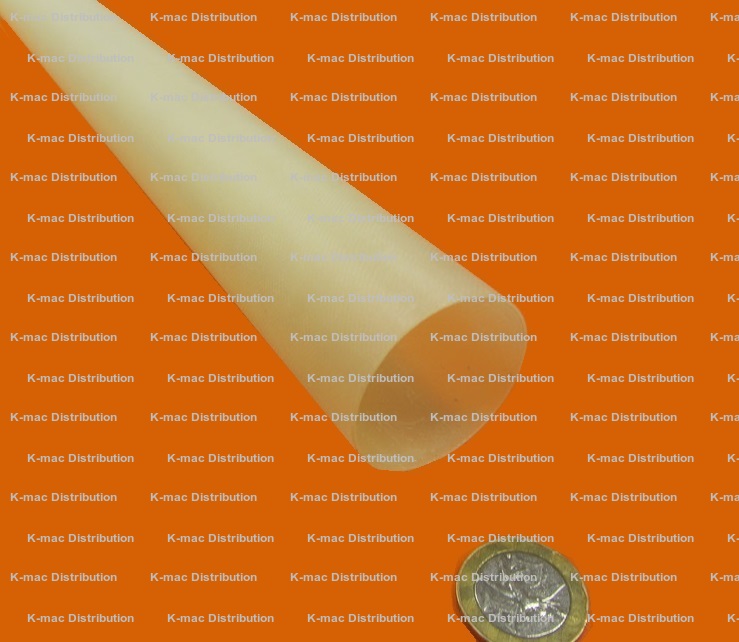

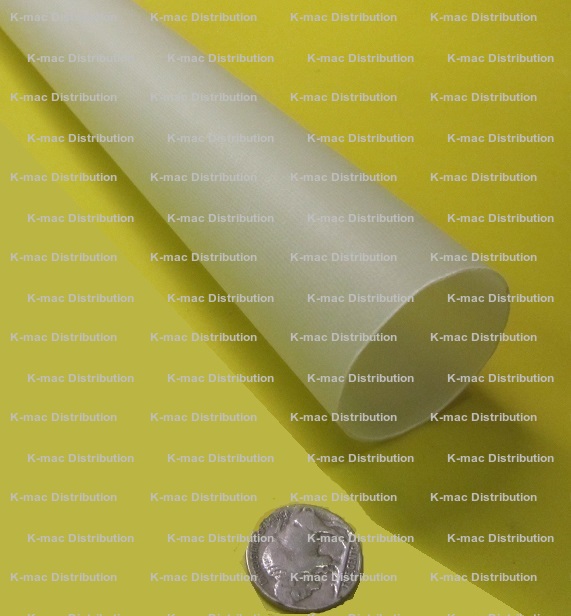

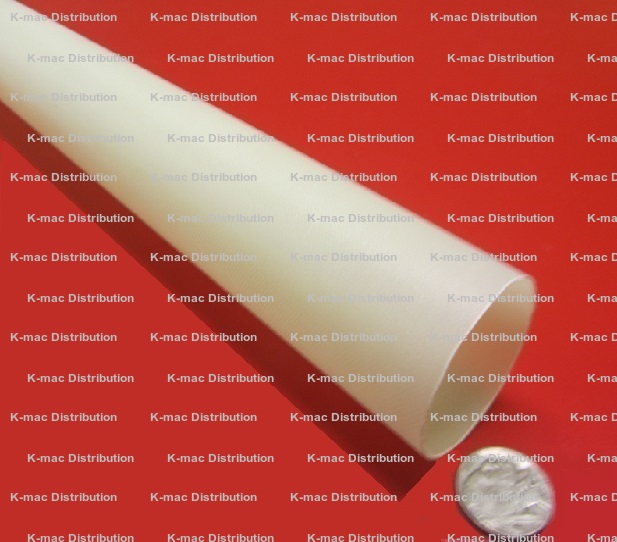

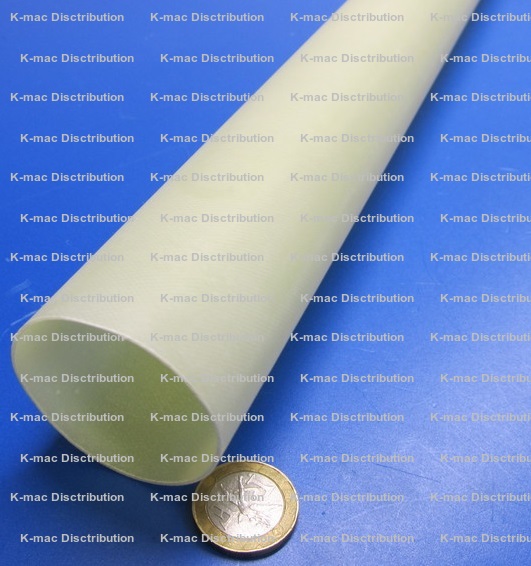

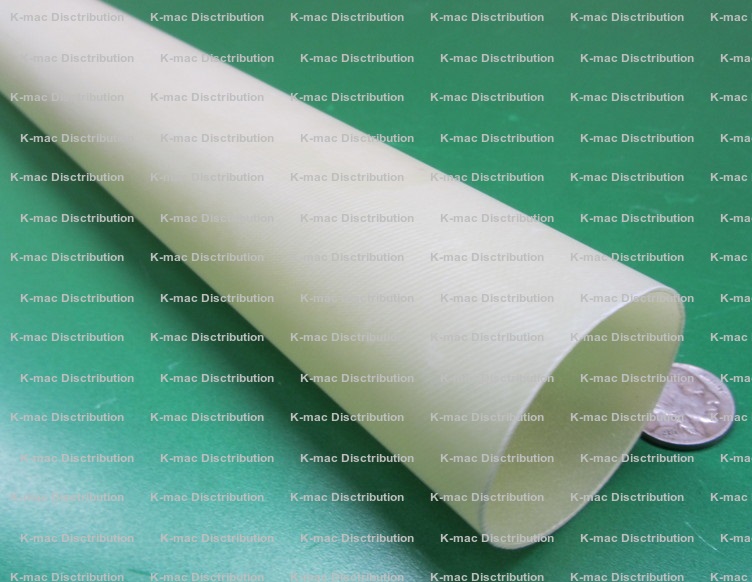

| G11 Tubes 1/32" Wall Thickness | |||||
| Part # | OD (in.) | ID (in.) | Price Per Foot | Minimum | Order Online |
|---|---|---|---|---|---|
| KM-1495 | 0.500 | 0.437 | $27.73 | 39 Feet | Add to Order |
| KM-1499 | 0.562 | 0.500 | $28.70 | 39 Feet | Add to Order |
| KM-1505 | 0.625 | 0.562 | $29.65 | 36 Feet | Add to Order |
| KM-1510 | 0.687 | 0.625 | $30.63 | 36 Feet | Add to Order |
| KM-1516K | 0.750 | 0.687 | $31.58 | 36 Feet | Add to Order |
| KM-1519K | 0.812 | 0.750 | $32.55 | 33 Feet | Add to Order |
| KM-8716 | 0.875 | 0.812 | $33.50 | 33 Feet | Add to Order |
| KM-1515K | 0.937 | 0.875 | $34.47 | 33 Feet | Add to Order |
| KM-8735 | 1.000 | 0.937 | $35.43 | 30 Feet | Add to Order |
| KM-1521 | 1.062 | 1.000 | $36.40 | 30 Feet | Add to Order |
| KM-8722 | 1.125 | 1.062 | $37.35 | 30 Feet | Add to Order |
| KM-8731 | 1.187 | 1.125 | $38.33 | 30 Feet | Add to Order |
| KM-8720 | 1.250 | 1.187 | $39.28 | 27 Feet | Add to Order |
| KM-8515 | 1.312 | 1.250 | $40.25 | 27 Feet | Add to Order |
| KM-8718 | 1.375 | 1.312 | $41.20 | 27 Feet | Add to Order |
| KM-8717 | 1.437 | 1.375 | $42.18 | 27 Feet | Add to Order |
| KM-8606 | 1.500 | 1.437 | $43.13 | 24 Feet | Add to Order |
| KM-8477 | 1.562 | 1.500 | $44.10 | 24 Feet | Add to Order |
| KM-8510 | 1.625 | 1.562 | $45.05 | 24 Feet | Add to Order |
| KM-8509 | 1.687 | 1.625 | $46.03 | 24 Feet | Add to Order |
| KM-8508 | 1.750 | 1.687 | $46.97 | 24 Feet | Add to Order |
| KM-8507 | 1.812 | 1.750 | $47.95 | 24 Feet | Add to Order |
| KM-8496 | 1.875 | 1.812 | $48.93 | 21 Feet | Add to Order |
| KM-8505 | 1.937 | 1.875 | $49.88 | 21 Feet | Add to Order |
| KM-8721 | 2.000 | 1.937 | $50.85 | 21 Feet | Add to Order |
| Rev. 04-23, 08-22, 04-22, 01-22 | |||||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
