Thermoset Plastic Laminates are uniformly dense and structurally strong material that will not soften appreciably under the reapplication of heat. It is an extremely durable plastic that is lightweight and moisture resistant. Industrial laminates are thermoset resin impregnated reinforcing materials (paper, cotton fabric, glass fabric, etc.) that are cured under heat and pressure to form solid shapes having high mechanical and electrical insulating properties. Laminates are available in sheet, rod, tube, and angle. Since laminates are comprised of a combination of materials, they are also referred to as composites.



Sheets, Plates, Rods, Tubes Available Sizes and Prices
G-10/FR4 Glass Reinforced G-11/FR5 Glass Reinforced-High Temp. G5 & G9 Glass Reinforced Melamine X, XX, XXX Paper Series
C, CE Canvas L, LE Linen G7 Silicone Impregnated High Temp Copper Clad G10/FR4

G10/FR4 Glass Reinforced Epoxy - natural (yellowish to light green) Technical Data Sheet   Chemical Resistance Chart   G-10/FR4 Sizes/Prices

Copper Clad G10/FR4
The most versatile all-around laminate, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.
NEMA G-10 MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

 G11 Glass Reinforced Epoxy - natural (yellow green to amber) Technical Data Sheet  Chemical Resistance Chart   G-11/FR5 Prices and sizes
This grade is similar to G10/FR4, with the addition of a higher operating temperature and some improved mechanical strength at elevated temperatures.
(NEMA G-11 certs to MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28 GEB-F.)

G5/G9 Glass Reinforced Melamine - natural (grayish brown) Technical Data Sheet  Chemical Resistance Chart

G5, G9 Prices and Sizes
This grade is composed of a continuous glass woven cloth base impregnated with a melamine resin binder. Melamines are the hardest of all laminates, exhibiting good dimensional stability and arc resistance. It is also caustic resistant.
NEMA G-5 MIL-I-24768/8 GMG , IEC 60893-3 Type 3 MF GC 201

NEMA G-9 MIL-I-24768/1 GME, IEC 60893-3 Type 3 MF GC 201

G7 Glass Reinforced Silicone - (cream to white)

Technical Data Sheet  Chemical Resistance Chart

G7 Prices and Sizes
Composed of a continuous glass woven cloth base impregnated with a silicone resin binder,this grade has excellent heat and arc resistance. It has extremely good dielectric loss properties under dry conditions and good electrical properties under humid conditions, although the percentage of change is high.
NEMA G-7 MIL-I-24768/17 GSG, IEC 60893-3 Type 6 SI GC 201

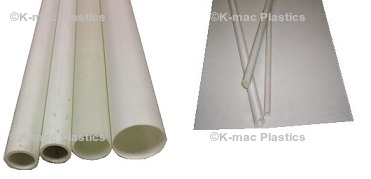

G7 Sheets Tubes

X/XX/XXX Paper Reinforced Phenolic - natural (tan) Technical Data Sheet  Chemical Resistance Chart

X, XX, XXX Sizes and Prices
This grade is composed of a paper base impregnated with a phenolic resin binder. It has good electric strength properties with fair mechanical strength. Outstanding for use as template material and or backup material.
X MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
XX MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
XXX MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201

Paper PHenolic

Canvas C/CE Fabric Reinforced Phenolic - natural (light tan to brown) Technical Data Sheet  Chemical Resistance Chart  C, CE Sizes and Prices
This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a medium weave canvas and is known primarily for it's mechanical properties. This grade is not recommended for primary insulation.
(Grade C certifies to Mil-I-24768/16 FBM, IEC 60893-3 Type 4, PF CC 201)
(Grade CE certifies to Mil-I-24768/14 FBG, IEC 60893-3 Type 4, PF CC 203)

Linen L/LE Cotton Fabric Reinforced Phenolic - natural (light tan to brown) Technical Data Sheet  Chemical Resistance Chart   L, LE Prices and Sizes
This grade is composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. This grade contains a fine weave linen and, like the canvas phenolic, is known for it's mechanical properties. The finer weave allows for machining more intricate details than Canvas, like gear teeth. This grade is not recommended for primary insulation.
NEMA L MIL-I-24768/15- FBI, IEC 60893-3 Type 4 PF CC 305
NEMA LE MIL-I-24768/13 FBE, IEC 60893-3 Type 4 PF CC 305



Specialty Grades:
FR-1 MIL-I-24768/24 PBM-PF, IEC 60893-3 Type 4 EP CP 201
CF , IEC 60893-3 Type 4 PF CC 203
G-3 MIL-I-24768/18 GPG, IEC 60893-3 Type 4 PF GC 301
CEM-1 MIL-I-24768/29-CEM-1
N-1 MIL-I-24768/9-NPG
XP MIL-I-24768/19-PBM-P, IEC 60893-3 Type 4 PF CP 201
XPC MIL-I-24768/20-PBM-PC, IEC 60893-3 Type 4 PF CP 207
P95-GPY , IEC 60893-3 Type 7 PI GC 301
