G10/FR4 Tubes Glass Reinforced - .031" Wall

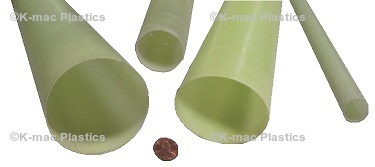

G10 FR4 Tubes 1/32 inch Wall

(Micarta) (High Pressure Laminates) G10/FR4 Glass Reinforced (yellowish to light green)

The most versatile all-around laminate and composite, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.

G10/FR4 Tube Technical Data Sheet G10/FR4 Tube Chemical Resistance Chart

Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202

.031" (1/32") Wall Thickness	.062" (1/16")Wall Thickness	.093" (3/32")Wall Thickness	.125" (1/8")Wall Thickness	.187" (3/16")Wall Thickness
.250" (1/4")Wall Thickness	.375" (3/8")Wall Thickness	.500" (1/2")Wall Thickness	.750" (3/4")WallThickness	1.00" Wall Thickness (Max. Possible)

Tubes are made in random lengths between 30" - 36".
Our pricing and minimums are based on the 36".

Tubes can also be made in 42" to 48" random lengths for the same pricing.
Measured lengths of 36"±1" and 48"±1" are also available via manual quote.

Part #	Outside Diameter (in.)	Inside Diameter (in.)	Price Per Foot	Minimum	Order Online
1/32 " Wall G10FR4 Tubes **Minimum's Apply, Non Stocked Item Pricing for Over 4.00" Diameter Wound Only
KM-1331	0.188	0.125	$23.15	48 Feet	Add to Order
KM-1333	0.250	0.188	$24.13	45 Feet	Add to Order
KM-3115V	0.281	0.218	$24.60	45 Feet	Add to Order
KM-1337	0.312	0.250	$25.10	45 Feet	Add to Order
KM-1341	0.375	0.312	$26.08	42 Feet	Add to Order
KM-1345	0.437	0.375	$27.05	42 Feet	Add to Order
KM-1349	0.500	0.437	$28.00	39 Feet	Add to Order
KM-1353	0.562	0.500	$28.98	39 Feet	Add to Order
KM-1359	0.625	0.563	$29.95	36 Feet	Add to Order
KM-1364	0.687	0.625	$30.92	36 Feet	Add to Order
KM-1370	0.750	0.688	$31.90	36 Feet	Add to Order
KM-1373	0.812	0.750	$32.88	33 Feet	Add to Order
KM-1286V	0.875	0.812	$33.85	33 Feet	Add to Order
KM-1378	0.937	0.875	$34.83	33 Feet	Add to Order
KM-5828	1.000	0.937	$35.80	30 Feet	Add to Order
KM-5835	1.031	0.969	$36.28	30 Feet	Add to Order
KM-5198	1.062	1.000	$37.80	30 Feet	Add to Order
KM-5837	1.094	1.031	$38.30	30 Feet	Add to Order
KM-5838	1.125	1.062	$38.80	27 Feet	Add to Order
KM-5839	1.156	1.094	$39.33	27 Feet	Add to Order
KM-5840	1.187	1.125	$39.80	27 Feet	Add to Order
KM-5841	1.250	1.187	$40.80	27 Feet	Add to Order
KM-5842	1.312	1.250	$41.80	27 Feet	Add to Order
KM-5843	1.375	1.312	$42.80	27 Feet	Add to Order
KM-5844	1.437	1.375	$43.83	24 Feet	Add to Order
KM-5845	1.500	1.437	$44.80	24 Feet	Add to Order
KM-5846	1.562	1.500	$45.82	24 Feet	Add to Order
KM-5847	1.625	1.562	$46.80	24 Feet	Add to Order
KM-5848	1.687	1.625	$47.82	24 Feet	Add to Order
KM-5829	1.750	1.687	$48.80	21 Feet	Add to Order
KM-5849	1.812	1.750	$49.83	21 Feet	Add to Order
KM-5850	1.937	1.875	$51.83	21 Feet	Add to Order
KM-5851	2.031	1.969	$53.32	21 Feet	Add to Order
KM-5852	2.094	2.031	$54.33	21 Feet	Add to Order
KM-5853	2.125	2.062	$54.80	21 Feet	Add to Order
KM-5854	2.156	2.094	$55.32	21 Feet	Add to Order
KM-5855	2.187	2.125	$55.82	21 Feet	Add to Order
KM-5856	2.250	2.187	$56.80	18 Feet	Add to Order
KM-5857	2.312	2.250	$57.82	18 Feet	Add to Order
KM-4624	2.375	2.312	$58.83	18 Feet	Add to Order
KM-5858	2.437	2.375	$59.83	18 Feet	Add to Order
KM-5859	2.500	2.437	$60.82	18 Feet	Add to Order
KM-5860	2.562	2.500	$61.83	18 Feet	Add to Order
KM-5861	2.625	2.562	$62.82	18 Feet	Add to Order
KM-5862	2.687	2.625	$63.83	18 Feet	Add to Order
KM-5863	2.750	2.687	$64.83	18 Feet	Add to Order
KM-5864	2.812	2.750	$65.82	18 Feet	Add to Order
KM-5865	2.937	2.875	$67.83	15 Feet	Add to Order
.031" Walls are not available in OD's = to or larger than 3.00"
Rev. 04-23, 08-22, 04-22, 02-22

Phenolic Tube Tolerances
		↓ Inside Diameter ↓
Outside Diameter	Turned OD Tolerance	Steel Mandrel	Built-up Mandrel
0.125" to 0.749"	±.005"	±.003"	-
0.750" to 1.999"	±.005"	±.004"	-
2.000" to 4.000"	±.008"	±.006"	-
4.001" - 12.000"	±.025" **	±.010"	-
12.001" - 18.000"	±.030" **	±.030"	±.060"
18.001" - 24.000"	±.035" **	±.040"	±.075"
24.001" - 48.000"	±.040" **	±.060"	±.090"
Tubes over 8.000" OD are supplied as wound, which are always fractions of an inch larger than stated OD. Tubes turned to the following OD tolerance can be quoted on request.
