Nylon, Extruded 6/6 Rods
Applications:
•Rollers, bushings and bearings
•Hinges and wear rings
•Wear strips
•Tooling fixtures, die wear plates, and form tools
•Rollers, bushings and bearings
•Hinges and wear rings
•Wear strips
•Tooling fixtures, die wear plates, and form tools
Resin specification: ASTM D6779-11 PA0114 or ASTM D6779-11
PA0110B54420 and ASTM D4066-01a (Reapproved 2008) PA0110B54220
superseding ASTM D4066-98 PA0114
Shapes specification: ASTM D5989-11 S-PA0111
Nylon Rods Technical Data Sheet
Nylon Chemical Resistance Chart
| Nylon 6/6 Extruded Rods | |||||
| Diameter (in.) | Part # | Color | Standard Length (ft) | Price Per Foot | Order Online |
|---|---|---|---|---|---|
| 0.062 | KR-256 | Natural | 4 | $1.17 | Add to Order |
| 0.093 | KR-257 | Natural | 4 | $1.34 | Add to Order |
| 0.125 | KR-258 | Natural | 4 | $1.25 | Add to Order |
| 0.125 | KR-3566 | Black | 4 | $1.32 | Add to Order |
| 0.187 | KR-259 | Natural | 5 | $1.32 | Add to Order |
| 0.187 | KR-3562 | Black | 5 | $1.36 | Add to Order |
| 0.250 | KR-260 | Natural | 8 | $1.37 | Add to Order |
| 0.250 | KR-3330 | Black | 8 | $1.43 | Add to Order |
| 0.313 | KR-261 | Natural | 8 | $1.50 | Add to Order |
| 0.313 | KR-1831 | Black | 8 | $1.54 | Add to Order |
| 0.375 | KR-262 | Natural | 8 | $3.10 | Add to Order |
| 0.375 | KR-3563 | Black | 8 | $3.80 | Add to Order |
| 0.438 | KR-263 | Natural | 8 | $3.23 | Add to Order |
| 0.438 | KR-3299 | Black | 8 | $3.74 | Add to Order |
| 0.500 | KR-264 | Natural | 8 | $3.44 | Add to Order |
| 0.500 | KR-1836 | Black | 8 | $3.98 | Add to Order |
| 0.563 | KR-265 | Natural | 8 | $4.55 | Add to Order |
| 0.563 | KR-3300 | Black | 8 | $5.46 | Add to Order |
| 0.625 | KR-266 | Natural | 8 | $5.11 | Add to Order |

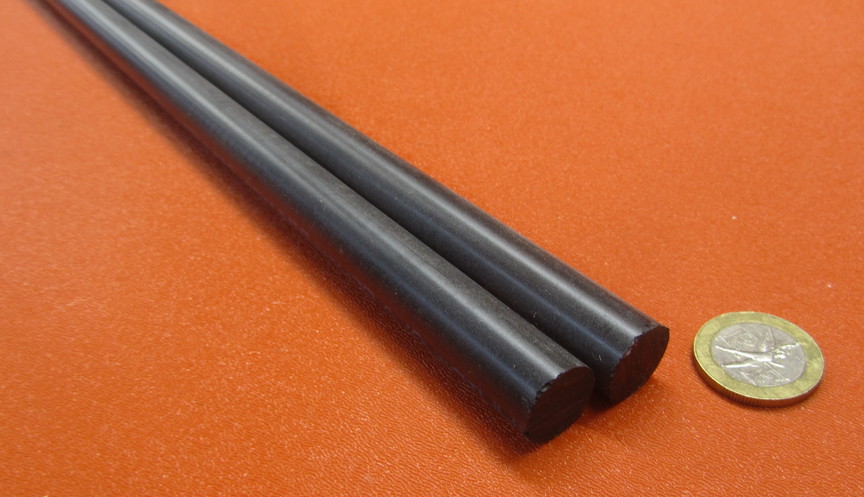

| 0.625 | KR-1839 | Black | 8 | $5.88 | Add to Order |
| 0.750 | KR-267 | Natural | 8 | $7.07 | Add to Order |
| 0.750 | KR-1841 | Black | 8 | $7.98 | Add to Order |
| 0.875 | KR-268 | Natural | 8 | $10.36 | Add to Order |
| 0.875 | KR-1844 | Black | 8 | $11.55 | Add to Order |
| 1.000 | KR-269 | Natural | 8 | $11.55 | Add to Order |
| 1.000 | KR-1846 | Black | 8 | $12.53 | Add to Order |
| 1.125 | KR-688 | Natural | 8 | $16.45 | Add to Order |
| 1.125 | KR-3301 | Black | 8 | $18.41 | Add to Order |
| 1.250 | KR-689 | Natural | 8 | $18.27 | Add to Order |
| 1.250 | KR-1849 | Black | 8 | $20.72 | Add to Order |
| 1.375 | KR-690 | Natural | 8 | $22.69 | Add to Order |
| 1.375 | KR-3302 | Black | 8 | $25.16 | Add to Order |
| 1.500 | KR-691 | Natural | 8 | $24.50 | Add to Order |
| 1.500 | KR-1852 | Black | 8 | $26.04 | Add to Order |
| 1.625 | KR-692 | Natural | 8 | $27.78 | Add to Order |
| 1.625 | KR-3383 | Black | 8 | $24.80 | Add to Order |
| 1.750 | KR-693 | Natural | 8 | $31.38 | Add to Order |
| 1.750 | KR-1855 | Black | 8 | $34.02 | Add to Order |
| 1.875 | KR-694 | Natural | 8 | $30.40 | Add to Order |
| 1.875 | KR-3304 | Black | 8 | $39.66 | Add to Order |
| 2.000 | KR-270 | Natural | 8 | $39.66 | Add to Order |
| 2.000 | KR-1857 | Black | 8 | $43.50 | Add to Order |
| 2.125 | KR-695 | Natural | 8 | $53.58 | Add to Order |
| 2.125 | KR-3190 | Black | 8 | $61.02 | Add to Order |
| 2.250 | KR-696 | Natural | 8 | $57.66 | Add to Order |
| 2.250 | KR-3191 | Black | 8 | $64.32 | Add to Order |
| 2.500 | KR-698 | Natural | 8 | $69.78 | Add to Order |
| 2.500 | KR-1861 | Black | 8 | $76.26 | Add to Order |

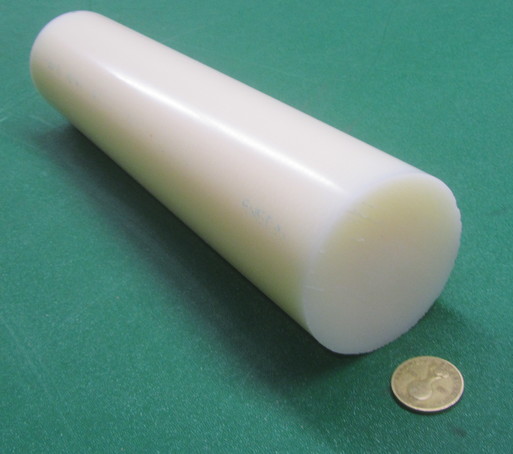

| 2.750 | KR-700 | Natural | 8 | $83.88 | Add to Order |
| 2.750 | KR-3194 | Black | 8 | $91.26 | Add to Order |
| 3.000 | KR-271 | Natural | 8 | $99.36 | Add to Order |
| 3.000 | KR-1864 | Black | 8 | $116.10 | Add to Order |
| 3.250 | KR-3332 | Natural | 8 | $139.68 | Add to Order |
| 3.250 | KR-3196 | Black | 8 | $152.70 | Add to Order |
| 3.500 | KR-701 | Natural | 8 | $157.26 | Add to Order |
| 3.500 | KR-3185 | Black | 8 | $171.42 | Add to Order |
| 3.750 | KR-702 | Natural | 8 | $177.66 | Add to Order |
| 3.750 | KR-3165 | Black | 8 | $191.28 | Add to Order |
| 4.000 | KR-272 | Natural | 4 | $180.55 | Add to Order |
| 4.000 | KR-3150 | Black | 4 | $196.31 | Add to Order |
| 4.500 | KR-703 | Natural | 4 | $260.36 | Add to Order |
| 5.000 | KR-273 | Natural | 4 | $307.51 | Add to Order |
| 5.500 | KR-705 | Natural | 4 | $494.40 | Add to Order |
| 5.750 | KR-706 | Natural | 4 | $562.98 | Add to Order |
| 6.000 | KR-274 | Natural | 4 | $582.40 | Add to Order |
| 8.000 | KR-707 | Natural | 4 | $744.92 | Add to Order |
| Rev. 11-21, 06-21 | |||||
| Rod-Natural | |
| Standard Length | Standard Tolerance |
| .250" to 1" -10' | +.002 - .000 |
| 1.125" to 2" - 4' & 8' | +.005 - .000 |
| 2.125" to 2.50" - 2' & 4' | +.025 - .000 |
| 2.625" to 6" - 2' & 4' | oversize |
|
Nylon Square Bar 4ft Standard Lengths Technical Data Sheet |
|||
| Width Across Flats (in.) | Part # | Price Per Foot | Order Online |
|---|---|---|---|
| 0.250 | KR-048 | $4.42 | Add to Order |
| 0.375 | KR-049 | $10.06 | Add to Order |
| 0.500 | KR-050 | $12.34 | Add to Order |
| 0.625 | KR-051 | $20.05 | Add to Order |
| 0.750 | KR-052 | $24.86 | Add to Order |
| 1.00 | KR-053 | $40.84 | Add to Order |
| Rev. 11-21 | |||
