Nylon 6 Tubing
Cast Nylon Tubing
Cast Nylon 6 Tubing Technical Data Sheet
|
Cast Nylon 6 Tubing -Straight Tubes
High Tensile Strength and Electrical Insulator and Flame Retardant and Wash-Down Applications. Food and Drug Administration (FDA) Compliant and U.S. Department of Agriculture (USDA) Compliant and 3A Sanitary Standards (3A) Compliant Color is natural off-white |
|||||
| Inside Diameter (in.) | Outside Diameter (in.) | Wall (in.) | Part # | Price Per 26" Tube | Order Online |
|---|---|---|---|---|---|
| 1.00 | 2.00 | 0.500 | KM-1002 | $147.38 | Add to Order |
| 1.00 | 2.25 | 0.625 | KM-1004 | $230.42 | Add to Order |
| 1.00 | 2.50 | 0.750 | KM-2459 | $254.38 | Add to Order |
| 1.00 | 3.00 | 1.00 | KM-2462 | $336.00 | Add to Order |
| 1.25 | 2.25 | 0.500 | KM-2457 | $186.02 | Add to Order |
| 1.25 | 3.25 | 1.00 | KM-1013 | $403.42 | Add to Order |
| 1.50 | 1.75 | .125 | KM-3958 | $28.98 | Add to Order |
| 1.50 | 2.00 | .250 | KM-2456 | $107.76 | Add to Order |
| 1.50 | 2.25 | .375 | KM-2458 | $163.30 | Add to Order |
| 1.50 | 2.50 | .500 | KM-1007 | $223.61 | Add to Order |
| 1.50 | 2.75 | .625 | KM-1008 | $295.87 | Add to Order |
| 1.50 | 3.00 | .750 | KM-1011 | $310.13 | Add to Order |
| 1.50 | 3.50 | 1.00 | KM-1016 | $448.20 | Add to Order |
| 1.75 | 2.75 | 0.50 | KM-1009 | $291.41 | Add to Order |
| 2.00 | 2.50 | 0.250 | KM-2461 | $152.23 | Add to Order |
| 2.00 | 3.00 | 0.500 | KM-2464 | $268.30 | Add to Order |
| 2.00 | 3.25 | 0.625 | KM-1014 | $354.07 | Add to Order |
| 2.00 | 3.50 | 0.750 | KM-2466 | $379.25 | Add to Order |
| 2.00 | 4.00 | 1.00 | KM-2467K | $486.67 | Add to Order |
| 2.25 | 3.25 | 0.500 | KM-1015 | $333.22 | Add to Order |
| 2.50 | 3.00 | 0.250 | KM-2465 | $186.02 | Add to Order |
| 2.50 | 4.50 | 1.00 | KM-1021 | $596.28 | Add to Order |

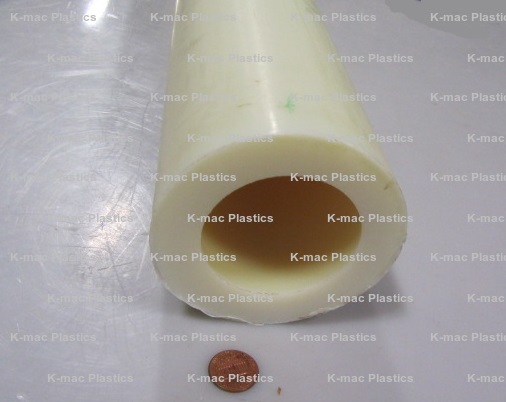

| 2.50 | 3.50 | 0.500 | KM-1018 | $346.27 | Add to Order |
| 3.00 | 4.00 | 0.500 | KM-2467 | $357.65 | Add to Order |
| 3.00 | 4.50 | 0.750 | KM-1022 | $504.46 | Add to Order |
| 3.00 | 5.00 | 1.00 | KM-2470 | $619.58 | Add to Order |
| 3.00 | 6.00 | 1.50 | KM-2473 | $921.24 | Add to Order |
| 3.00 | 6.50 | 1.75 | KM-1032 | $1,108.49 | Add to Order |
| 3.50 | 4.00 | 0.500 | KM-2468 | $243.98 | Add to Order |
| 3.50 | 4.50 | 0.500 | KM-2469 | $361.92 | Add to Order |
| 3.50 | 5.00 | 0.750 | KM-2471 | $519.48 | Add to Order |
| 3.50 | 5.50 | 1.00 | KM-1027 | $723.84 | Add to Order |
| 4.00 | 5.00 | 0.500 | KM-2472 | $387.46 | Add to Order |
| 4.00 | 5.50 | 1.00 | KM-1028 | $555.41 | Add to Order |
| 4.00 | 6.00 | 1.00 | KM-2474 | $640.80 | Add to Order |
| 4.00 | 6.50 | 1.25 | KM-1033 | $994.03 | Add to Order |
| 4.00 | 7.00 | 1.50 | KM-1034 | $1,139.38 | Add to Order |
| 4.00 | 7.50 | 1.75 | KM-1036 | $1,127.21 | Add to Order |
| 4.50 | 5.50 | 0.500 | KM-1029 | $419.50 | Add to Order |
| 5.00 | 6.00 | 0.500 | KM-2475 | $602.06 | Add to Order |
| 5.00 | 7.00 | 1.00 | KM-1035 | $919.56 | Add to Order |
| 5.50 | 7.50 | 1.00 | KM-1037 | $992.11 | Add to Order |
| Rev. 04-23, 12-22, 03-22, 02-22 | |||||
OD tolerance is + 1/4" and ID tolerance is - 1/4" for Machining
