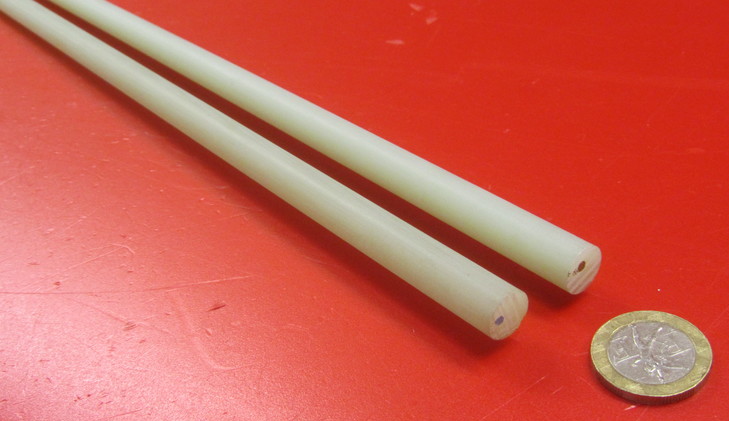

G10/FR4 Rods Glass Reinforced Epoxy
.jpg)
(Micarta) (High Pressure Laminates) G10/FR4 Glass
Reinforced Epoxy - natural
(yellowish to light green)
Technical Data Sheet
Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade
is a continuous glass woven fabric base impregnated with an epoxy resin binder.
It has extremely high mechanical strength, good dielectric loss properties, and
good electric strength properties, both wet and dry.
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202
G10/FR4 Sheets, Tubes, Bar Stock, Balls,
Copper Clad G10/FR4, Carbon Filled G10/FR4, Glass Filled 30%
| G10/FR4 Rods | ||||
| Part # | Diameter (in.) | Price Per Foot | Minimum Order (ft.) | Order Online |
|---|---|---|---|---|
| KR-1202 | .062" | $3.26 | 20 | Add to Order |
| KR-1203 | .093" | $2.84 | 24 | Add to Order |
| KR-1204 | .125" | $2.64 | 24 | Add to Order |
| KR-1205 | .156" | $3.56 | 24 | Add to Order |
| KR-1206 | .187" | $3.33 | 24 | Add to Order |
| KR-1207 | .250" | $5.06 | 20 | Add to Order |
| KR-1208 | .312" | $5.79 | 20 | Add to Order |
| KR-1209 | .375" | $6.82 | 16 | Add to Order |
| KR-1210 | .437" | $7.50 | 12 | Add to Order |
| KR-1211 | .500" | $8.18 | 8 | Add to Order |
| KR-1212 | .562" | $10.08 | 8 | Add to Order |
| KR-1213 | .625" | $11.95 | 8 | Add to Order |
| KR-1214 | .750" | $15.55 | 4 | Add to Order |
| KR-1215 | .875" | $19.82 | 4 | Add to Order |
| KR-1216 | 1.000" | $24.46 | 4 | Add to Order |
| KR-1217 | 1.125" | $29.63 | 4 | Add to Order |
| KR-1218 | 1.250" | $34.74 | 4 | Add to Order |
| KR-1219 | 1.375" | $42.33 | 4 | Add to Order |
| KR-1220 | 1.500" | $49.72 | 4 | Add to Order |
| KR-1221 | 1.625" | $56.87 | 4 | Add to Order |
| KR-1222 | 1.750" | $72.45 | 4 | Add to Order |
| KR-1223 | 2.000" | $98.60 | 4 | Add to Order |
| KR-1224 | 2.250" | $136.66 | 4 | Add to Order |
| KR-1225 | 2.500" | $151.40 | 4 | Add to Order |
| KR-1226 | 2.750" | $183.37 | 4 | Add to Order |
| KR-1227 | 3.000" | $219.25 | 4 | Add to Order |
| KR-1228 | 3.250" | $255.22 | 4 | Add to Order |
| KR-1229 | 3.500" | $298.01 | 4 | Add to Order |
| KR-1230 | 3.750" | $341.26 | 4 | Add to Order |
| KR-1231 | 4.000" | $392.13 | 4 | Add to Order |
| KR-2899 | 4.500" | $497.77 | 4 | Add to Order |
| KR-1232 | 5.000" | $608.76 | 4 | Add to Order |
| KR-1233 | 6.000" | $887.02 | 4 | Add to Order |
| Tolerances | ||||
| Under 1.375" Dia. | ±.001" | |||
| 1.375" Dia. & Over | ±.003" | |||
| Rev. 08-23, 04-23, 03-23, 11-22 | ||||
