TYGON® S3™ E-3603 Autoclavable Laboratory Tubing
Tygon E-3603 Tubing

  • Outstanding chemical resistance

  • Lot-to-lot consistency for reproducible results

  • Increases productivity in peristaltic pumps - outlasts other clear tubing 2 to 1

  • Ideal for condensers, incubators, desiccators, gas lines and drain lines

  • TYGON® S3™ E-3603 Autoclavable Labratory Tubing

  • Crystal-clear and flexible, Tygon® Laboratory Tubing handles virtually all inorganic chemicals found in the lab. It is non-oxidizing and non-contaminating.

  • Long-lasting and crack-resistant,TYGON® S3™  E-3603 Laboratory Tubing is less permeable than rubber tubing. The glassy-smooth inner bore helps prevent buildup so that cleaning is facilitated. Coils are marked at 1-foot intervals for easy measuring. Autoclavable. Remains flexible at -45°F (43°C). Durometer hardness: Shore A, 55.

TYGON® S3™  E-3603 Technical Data

TYGON® S3™ E-3603 Autoclavable Labratory Tubing

Previously Tygon R-3603 - AAC Numbers Correspond with new ACF Numbers
Tygon Part # Outside Diameter (in.) Inside Diameter (in.) Wall (in.) K-mac Part # Price Per 50 Feet, Unless Noted Order Online
AAC00001 0.094 0.031 0.031 KM-2490 $41.32 Add to Order
AAC00002 0.125 0.063 0.031 KM-2491 $58.88 Add to Order
AAC00003 0.188 0.063 0.063 KM-2492 $168.24 Add to Order
AAC00004 0.156 0.094 0.031 KM-2493 $84.52 Add to Order
AAC00005 0.219 0.094 0.063 KM-2494 $184.68 Add to Order
AAC00006 0.188 0.125 0.031 KM-2495 $52.00 Add to Order

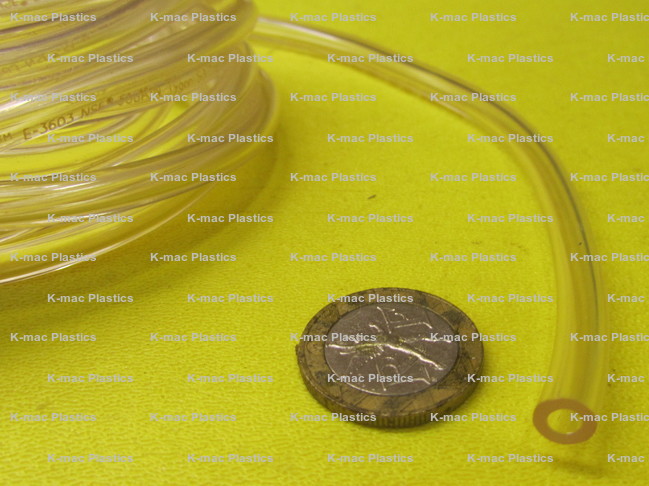

AAC00007 0.250 0.125 0.063 KM-2496 $190.00 Add to Order

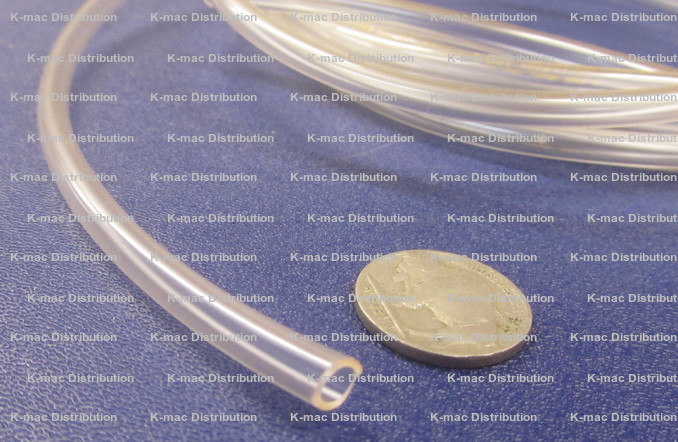

AAC00009 0.219 0.156 0.031 KM-2497 $128.28 Add to Order

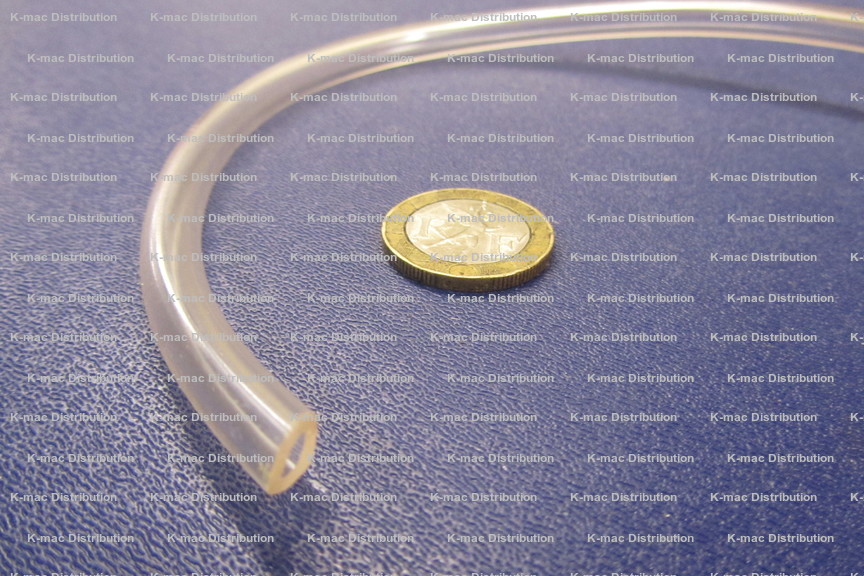

AAC00010 0.281 0.156 0.063 KM-2498 $258.92 Add to Order

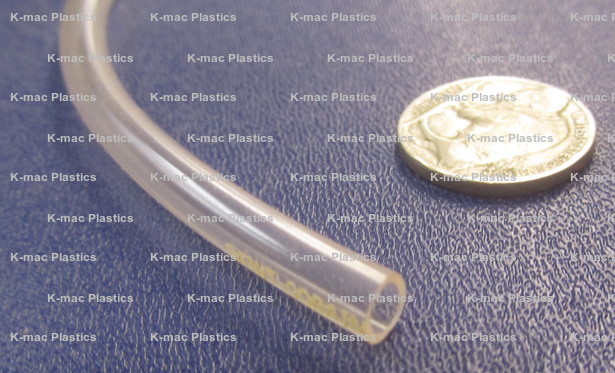

AAC00011 0.250 0.188 0.031 KM-2499 $41.32 Add to Order

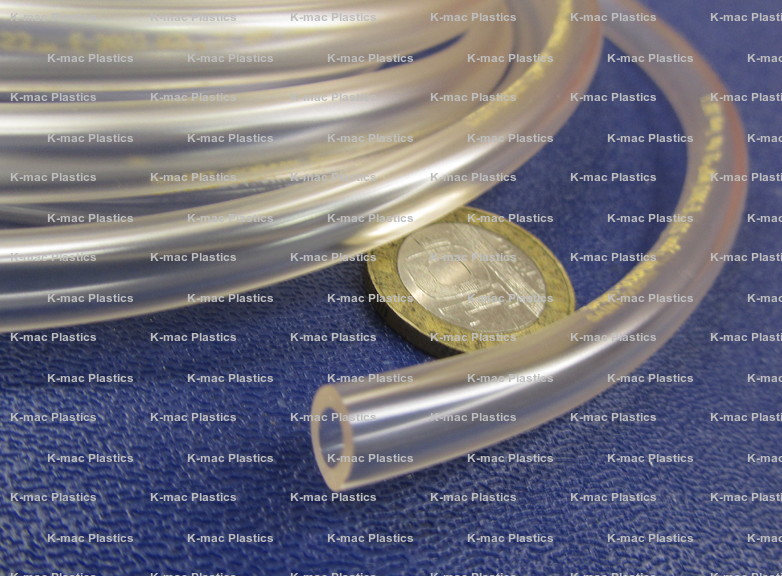

AAC00012 0.313 0.188 0.063 KM-2500 $252.72 Add to Order

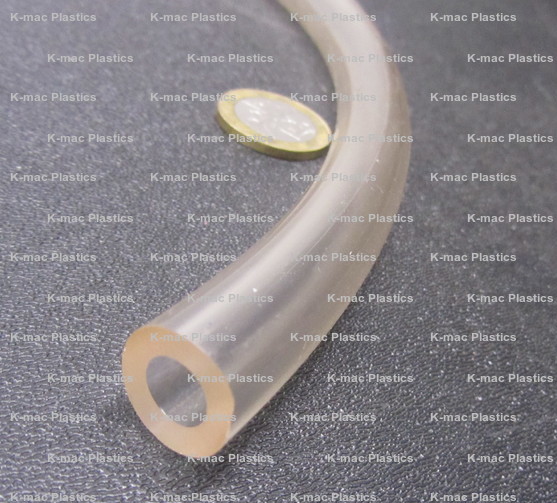

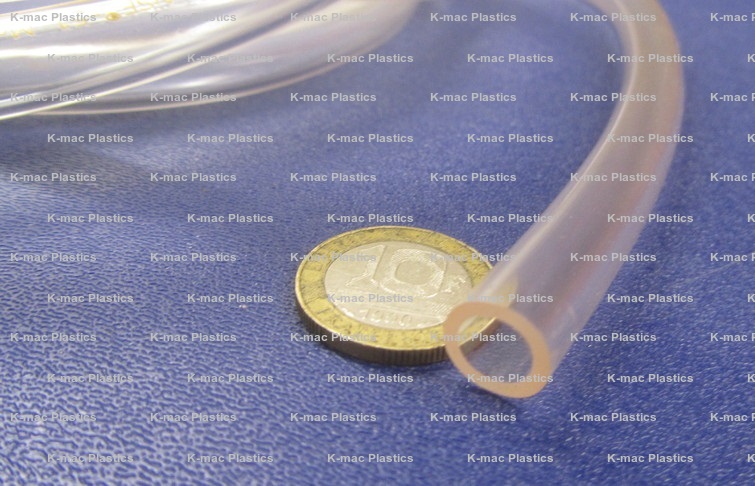

AAC00014 0.438 0.188 0.125 KM-2502 $630.52 Add to Order

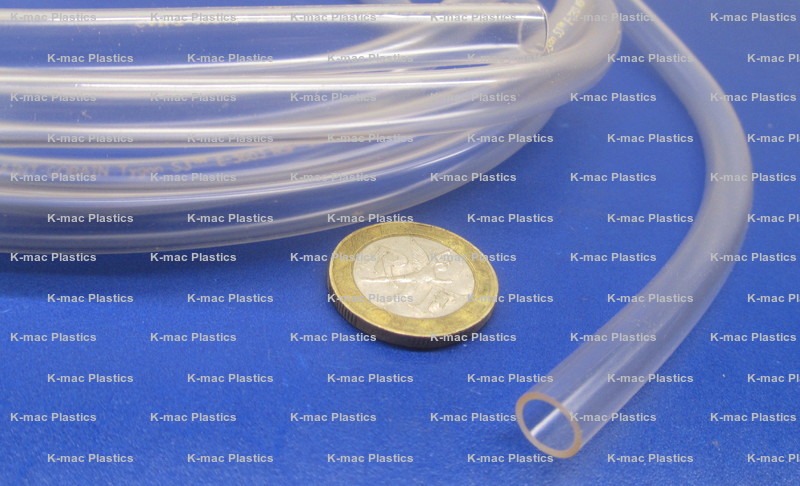

AAC00016 0.313 0.250 0.031 KM-2503 $181.56 Add to Order

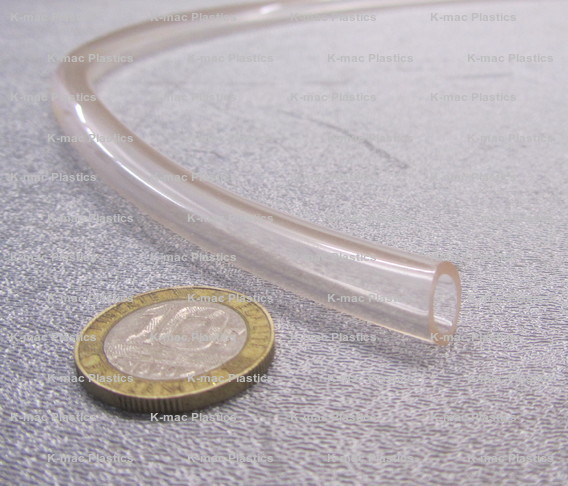

AAC00017 0.375 0.250 0.063 KM-2504 $309.72 Add to Order

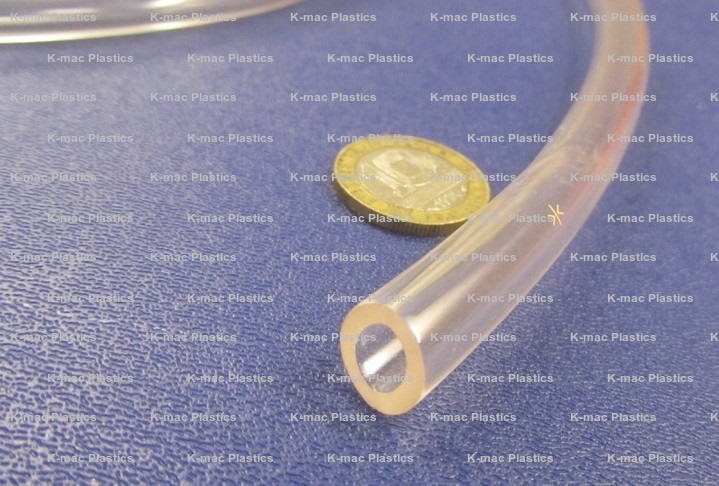

AAC00018 0.438 0.250 0.094 KM-2505 $573.24 Add to Order

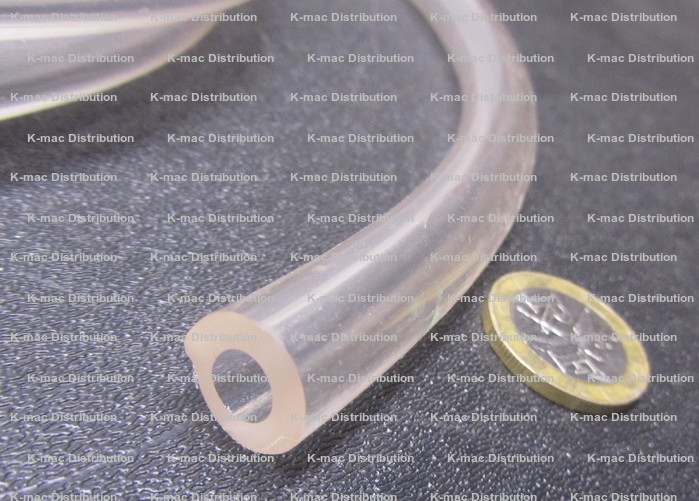

AAC00019 0.500 0.250 0.125 KM-2506 $640.68 Add to Order
AAC00022 0.438 0.313 0.063 KM-2507 $410.64 Add to Order

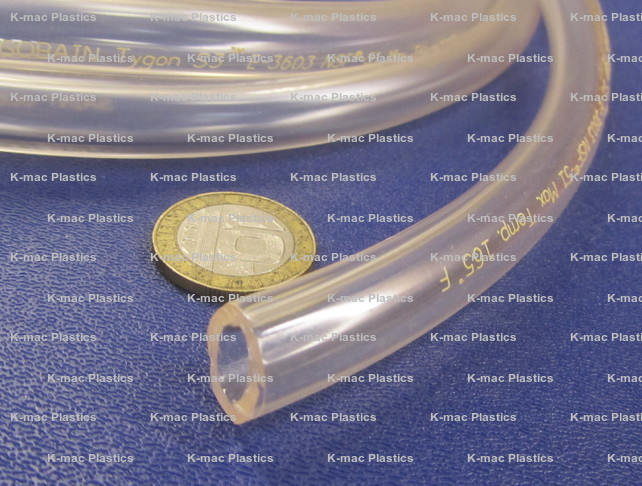

AAC00023 0.500 0.313 0.094 KM-2508 $636.36 Add to Order
AAC00024 0.563 0.313 0.125 KM-2509 $670.16 Add to Order

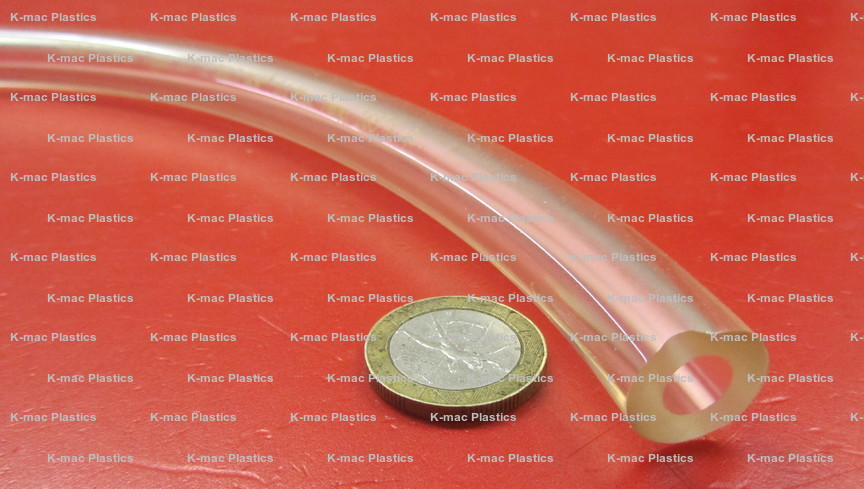

AAC00025 0.625 0.313 0.156 KM-2510 $1,146.44 Add to Order

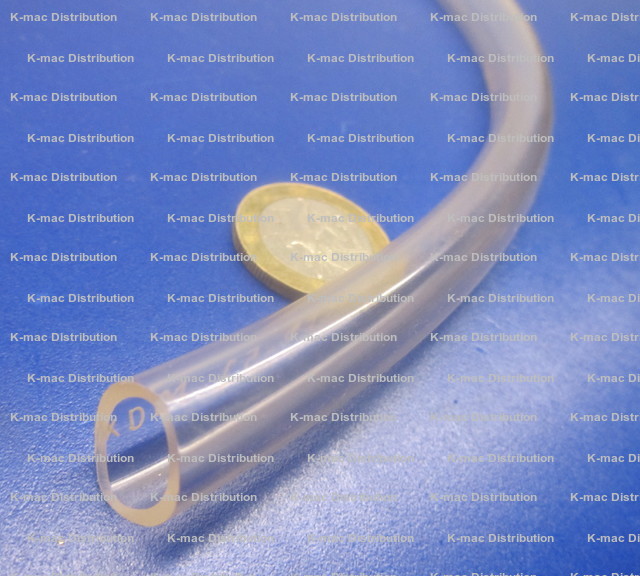

AAC00027 0.500 0.375 0.063 KM-2511 $156.50 Add to Order

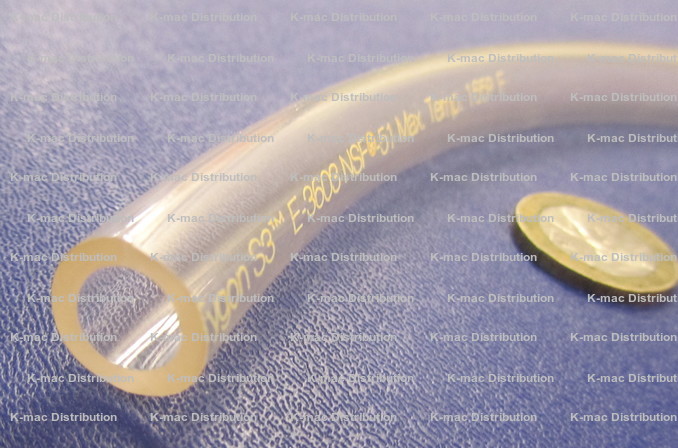

AAC00028 0.563 0.375 0.094 KM-2512 $616.92 Add to Order

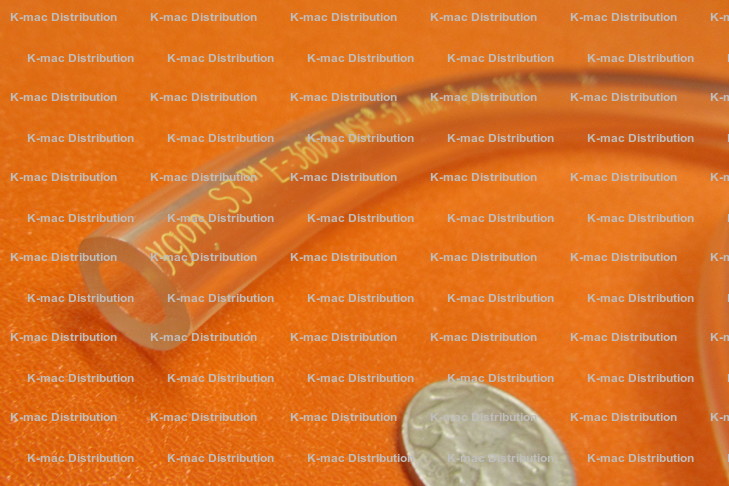

AAC00029 0.625 0.375 0.125 KM-2513 $812.08 Add to Order
AAC00030 0.875 0.375 0.250 KM-5264 $2,716.20 Add to Order
AAC00032 0.563 0.438 0.063 KM-2514 $597.68 Add to Order
AAC00033 0.625 0.438 0.094 KM-2515 $778.76 Add to Order
AAC00034 0.688 0.438 0.125 KM-2516 $1,098.76 Add to Order
AAC00036 0.625 0.500 0.063 KM-2517 $633.32 Add to Order
AAC00037 0.688 0.500 0.094 KM-2518 $902.52 Add to Order
AAC00038 0.750 0.500 0.125 KM-2519 $1,017.00 Add to Order
AAC00039 0.813 0.500 0.156 KM-2520 $1,538.16 Add to Order
AAC00040 1.125 0.500 0.312 KM-5229 $2,053.38 Add to Order
AAC00041 0.750 0.563 0.094 KM-2521 $859.32 Add to Order
AAC00042 0.813 0.563 0.125 KM-2522 $1,289.96 Add to Order
AAC00045 0.813 0.625 0.094 KM-2523 $968.60 Add to Order
AAC00046 0.875 0.625 0.125 KM-2524 $1,185.20 Add to Order
AAC00050 0.875 0.688 0.094 KM-2526 $1,157.48 Add to Order
AAC00053 1.000 0.750 0.125 KM-2527 $1,316.64 Add to Order
AAC00055 1.125 0.750 0.188 KM-2529 $2,479.52 Add to Order
AAC00057 1.250 0.750 0.250 KM-2530 $3,506.32 Add to Order
AAC00058 1.500 0.750 0.375 KM-5227 $4,789.24 Add to Order
AAC00059 1.125 0.875 0.125 KM-2531 $1,561.64 Add to Order
AAC00062 1.250 1.000 0.125 KM-2533 $1,616.32 Add to Order
AAC00064 1.375 1.000 0.188 KM-2534 $2,041.40 Add to Order
AAC00065 1.500 1.000 0.250 KM-2535 $3,239.40 Add to Order
AAC00068 1.500 1.125 0.188 KM-2536 $3,403.96 Add to Order
AAC00069 1.500 1.250 0.125 KM-2537 $2,136.00 Add to Order
AAC00070 1.625 1.250 0.188 KM-2538 $3,159.00 Add to Order
AAC00073 1.875 1.500 0.188 KM-2540 $4,375.68 Add to Order
AAC00074 2.000 1.500 0.250 KM-2541 $6,041.24 Add to Order
AAC00076 2.250 1.750 0.250 KM-2542 $5,088.45 Add to Order
AAC00078 2.500 2.000 0.250 KM-2543 $7,064.58 Add to Order
Rev. 10-23, 04-23, 09-22, 08-22
