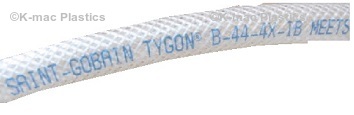

TYGON® S3 B-44-4X IB Pressure Tubing
Tygon B-44-4X-IB Tubing

  • Handles four times the pressure of non-reinforced tubing

  • Smooth, non-porous bore won't trap particulate matter

  • Clear wall for visualization of flow

  • Meets FDA, 3-A and NSF criteria


TYGON® S3 B-44-4X IB


TYGON® S3  B-44-4X IB Pressure Tubing's unique flexibility gets it into service quickly and easily. This means less tubing footage, fittings and labor than required for rigid systems. Reinforced with a tough polyester inner-braid imbedded in the wall, it can handle four times the pressure of non-reinforced tubing. TYGON® S3 B-44-4X IB Pressure Tubing is compatible with virtually all non-solvent chemicals, meeting the needs of many industries in hundreds of applications where flexibility and higher pressure are required. Its clear wall permits positive flow monitoring and inspection.

The smooth inner bore of TYGON® S3 B-44-4X IB Pressure Tubing (smoother than virtually all stainless steel) will not trap bacteria-harboring particles, making it ideal for food and beverage use. It is non-toxic, odorless, taste-free and exhibits outstanding resistance to the alkaline cleaners used in this industry.

TYGON® S3 B-44-4X IB Technical Data



**Denotes:  2 Week Lead Time May Apply.

Was Tygon B-44-4X

Tygon Part #

Standard Coil Length Feet

Outside Diameter Inches

Inside Diameter Inches

Wall Inches

Stock #

Price per coil

Purchase Online

ADA00018

50'

0.438

0.250

0.094

KM-2560

$183.90

Purchase
ADA00029

50'

0.625

0.375

0.125

KM-2561

$280.30

Purchase
ADA00038

50'

0.750

0.500

0.125

KM-2562

$365.70

Purchase
ADA00046

50'

0.875

0.625

0.125

KM-2563

$472.90

Purchase
ADA00053

50'

1.000

0.750

0.125

KM-2564

$516.60

Purchase
ADA00064

50'

1.375

1.000

0.188

KM-2565

$834.70

Purchase
ADA00070

50'

1.625

1.250

0.188

KM-2566**

$1,232.70

Purchase
ADA00074

50'

2.000

1.500

0.250

KM-2567

$2,069.00

Purchase
ADA05074

20'

2.000

1.500

0.250

KM-2568

$827.60

Purchase
ADA06074

10'

2.000

1.500

0.250

KM-2571

$413.80

Purchase
ADA05079

20'

2.750

2.000

0.375

KM-2569

$1,904.10

Purchase
ADA06079

10'

2.750

2.000

0.375

KM-2572

$952.00

Purchase
ADA05086

20'

3.750

3.000

0.375

KM-2570

$2,464.80

Purchase
ADA06086

10'

3.750

3.000

0.375

KM-2573

$1,232.40

Purchase
