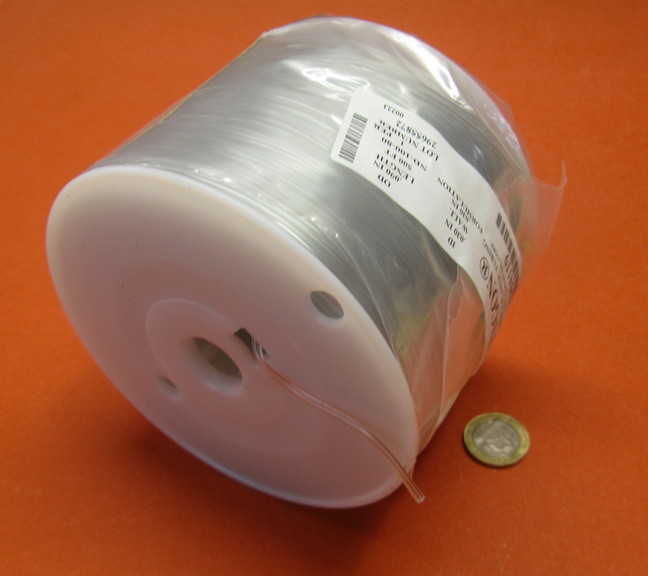

TYGON® ND-100-80 Microbore Tubing

Stiff enough for easy handling, soft enough to resist puncturing
Micro-diameter sizes fit needle gauges 30 to 17
Ideal for precision injection and dispensing applications
Meets USP Class VI criteria

TYGON® ND-100-80 Microbore Tubing

Select TYGON® ND-100-80 Microbore Tubing for intravenous and arterial infusion as well as other surgical, hospital and laboratory applications. It is flexible enough to permit use of a single size tubing with several different needle gauges, yet sufficiently rigid to minimize the danger of wall collapse. TYGON® ND-100-80 Microbore Tubing is non-toxic, non-pyrogenic and biocompatible. Durometer hardness: Shore A, 83.

TYGON® ND-100-80 Microbore Tubing can be sterilized by radiation, ethylene oxide, steam or chemical methods.

TYGON® ND-100-80 Tubing Technical Data

TYGON® ND-100-80

Formerly Tygon® S-54-HL

Outside Diameter (in.)	Inside Diameter (in.)	Wall (in.)	Part #	Price Per 500 Feet	Order Online
0.030	.010	.010	KM-5234	$459.58	Add to Order
0.060	.020	.020	KM-2721	$459.58	Add to Order
0.090	.030	.030	KM-2722	$555.28	Add to Order
0.070	.040	.015	KM-2723	$581.62	Add to Order
0.090	.050	.020	KM-2724	$555.28	Add to Order
Rev. 03-22
