PTFE 90 Degree Angles

The best chemically resistant material available and it continuously handles high temperatures.

PTFE Typical Properties

PTFE Chemical Resistance

 Ptfe Angles



PTFE Angles 90 Degree

Fluoropolymer, 5 Ft. Lengths, Natural (white)

Stock Order # Thickness Inches Arm Length Inches Price/Ft Purchase Online

KA-038

.063 .500

$23.30

Purchase

KA-039

.125 1.00

$70.66

Purchase

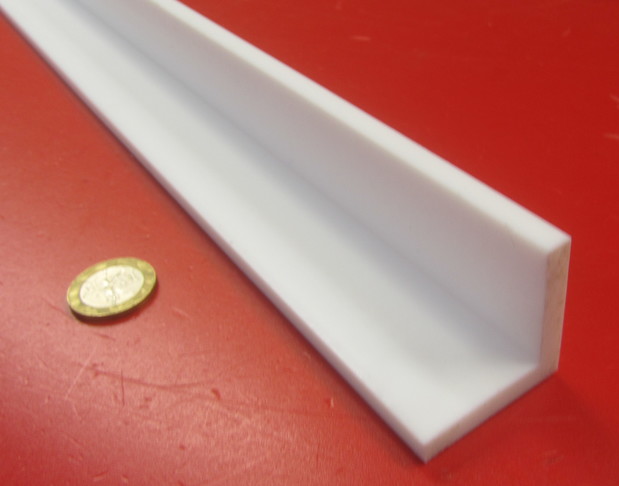

KA-040

.250 1.50

$194.40

Purchase

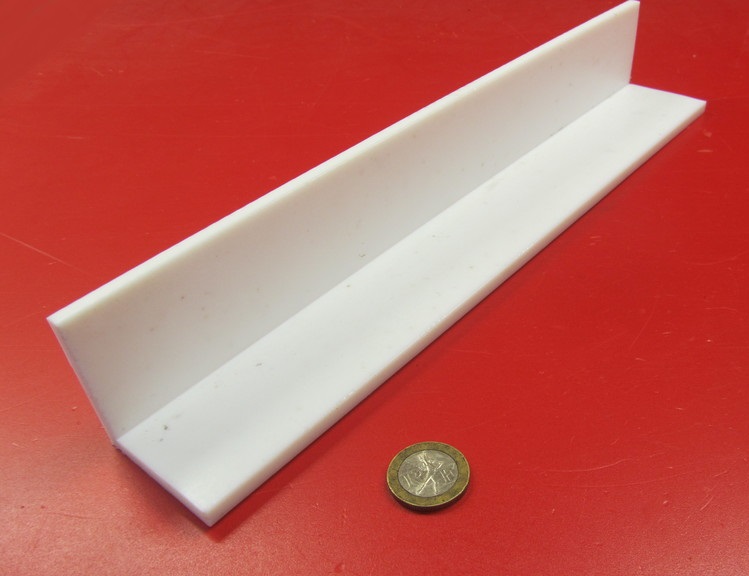

KA-041

.250 2.00

$239.56

Purchase



Specific Gravity:  2.16

Tensile Strength @ Break  3,000 psi

Elongation@ Break  200%

Shore Hardness  54

DTUL %@1200 psi   6.2%

Limiting PV @ 100FPM  2,200
