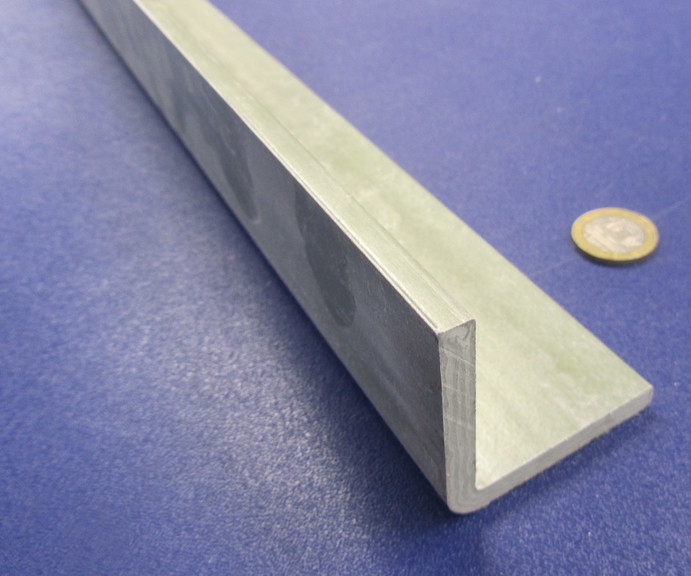

Fiberglass 90 Degree Angles
Features and Benefits:
Corrosion Resistant, Non-Conductive Thermally and Electrically, Non-Magnetic Electromagnetic Transparency, Lightweight, High Strength,
Dimensional Stability, Low Maintenance
Operating Temperature -50° to +140° F
| Fiberglass 90 Degree Angles | ||||
| Drug Administration (FDA)
Compliant Fiberglass Technical Data Sheet 10 ft standard lengths, Cut in 1/2 for shipping. |
||||
| Thickness (in.) | Arm Length (in.) | Part # | Price Per 5 Feet | Order Online |
|---|---|---|---|---|
| 0.125 | 1.00 | KA-025 | $33.12 | Add to Order |
| 0.188 | 1.25 | KA-118 | $52.15 | Add to Order |
| 0.188 | 1.50 | KA-042 | $57.96 | Add to Order |
| 0.250 | 1.50 | KA-121 | $71.06 | Add to Order |
| 0.250 | 2.00 | KA-026 | $92.92 | Add to Order |
| 0.250 | 3.00 | KA-027 | $125.78 | Add to Order |
| 0.250 | 4.00 | KA-029 | $152.30 | Add to Order |
| 0.375 | 3.00 | KA-028 | $174.44 | Add to Order |
| 0.375 | 4.00 | KA-030 | $239.80 | Add to Order |
| 0.375 | 6.00 | KA-044 | $306.42 | Add to Order |
| 0.500 | 4.00 | KA-045 | $293.96 | Add to Order |
| Rev. 06-24, 10-23, 06-22, 02-22 | ||||
Fiberglass GPO3 Red Angles 90 |
|||||
| Arm
Length Tolerances are +/-.094", Thickness Tolerances are +/-.020" |
|||||
| Part # | Thickness (in.) | Arm Length (in.) | Length (in.) | Price Each | Order Online |
|---|---|---|---|---|---|
| KA-359 | 0.125 | 1.250 | 36 | $35.94 | Add to Order |
| KA-358 | 0.125 | 1.500 | 36 | $43.00 | Add to Order |
| KA-352 | 0.250 | 2.000 | 36 | $77.74 | Add to Order |
| KA-351 | 0.250 | 3.000 | 36 | $128.34 | Add to Order |
| KA-356 | 0.125 | 1.250 | 72 | $59.90 | Add to Order |
| KA-355 | 0.125 | 1.500 | 72 | $71.68 | Add to Order |
| KA-350 | 0.250 | 2.000 | 72 | $129.58 | Add to Order |
| KA-353 | 0.250 | 3.000 | 72 | $213.90 | Add to Order |
| Rev. 04-23, 06-22, 03-22, 02-22 | |||||
