ETFE Rods and Tubes
Ethylene Tetrafluoroethylene
There is currently a worldwide shortage of ETFE resin, and we are told by manufacturers that ETFE is backordered until 2025.
ETFE Fluoropolymer Rod and Tubes are much more abrasion resistant
than PTFE. It is also an excellent electrical insulator with superior impact
strength.
ETFE provides both corrosion resistance and mechanical
strength over a wide temperature range with resistance to weathering, low
friction, electrical and thermal insulation.
ETFE offers high purity, excellent chemical resistance, good permeability
resistance, and excellent abrasion resistance over a temperature range of -300°F
to +300°F (-185°C to +150°C).
ETFE Rods 6 Foot Standard Length, Natural |
|||
| Part # | Diameter (in.) | Price Per Foot | Order Online |
|---|---|---|---|
| KR-796 | 0.125 | $6.48 | Unavailable |
| KR-797 | 0.187 | $9.30 | Unavailable |
| KR-798 | 0.250 | $13.45 | Unavailable |
| KR-799 | 0.375 | $23.95 | Unavailable |
| KR-8326 | 0.437 | $30.88 | Unavailable |
| KR-800 | 0.500 | $42.20 | Unavailable |
| KR-800G | 0.625 | $96.15 | Unavailable |
| KR-801 | 0.750 | $145.30 | Unavailable |
| KR-802 | 1.00 | $185.04 | Unavailable |

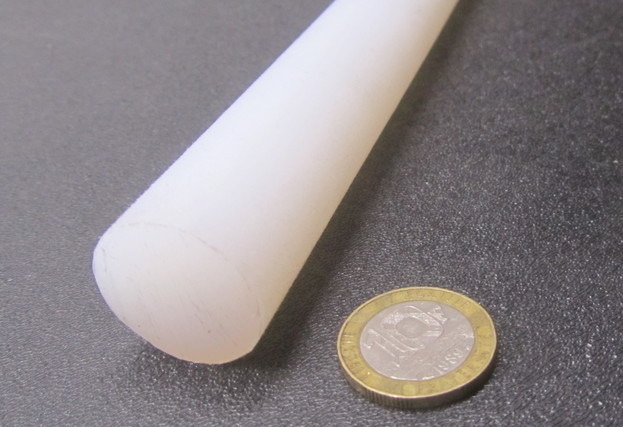

| KR-803 | 1.25 | $286.34 | Unavailable |
| KR-804 | 1.50 | $401.20 | Unavailable |
| KR-804G | 1.75 | $539.82 | Unavailable |
| Rev. 03-22, 09-21, 06-21 | |||
ETFE (Tefzel) Tubing |
||||||
| Part # | OD (in.) | ID (in.) | Wall (in.) | Coil Length | Price Per Coil | Order Online |
|---|---|---|---|---|---|---|
| KM-5377 | .062 | .015 | .023 | 50' | $593.00 | Unavailable |
| KM-5376 | .062 | .020 | .021 | 50' | $512.00 | Unavailable |
| KM-5375 | .125 | .062 | .031 | 50' | $772.00 | Unavailable |
| KM-5374 | .125 | .093 | .015 | 50' | $230.00 | Unavailable |
| KM-5372 | .250 | .187 | .031 | 50' | $513.00 | Unavailable |
| KM-5407 | .312 | .232 | .040 | 50' | $910.00 | Unavailable |
| KM-5409 | .375 | .278 | .049 | 50' | $921.00 | Unavailable |
| KM-23796 | .375 | .312 | .031 | 50' | $772.00 | Unavailable |
| KM-5384 | .500 | .375 | .062 | 50' | $1,555.00 | Unavailable |
| Rev. 10-23, 04-23, 03-22, 02-22 | ||||||
