Delrin AF Tubes PTFE Filled
Delrin AF Technical Data Sheet
Chemical Resistance Chart for Delrin®
OD/ID Tolerances : +/-.040"
OD + Tolerance, ID - Tolerance for Machining.
ID has rough surface due to PTFE Fibers, Custom Extruded, Made to Order. Lead Times may Apply
Filled Acetals have better wear (up to 5X's better,) have increased self-lubrication, and have lower coefficient of friction.

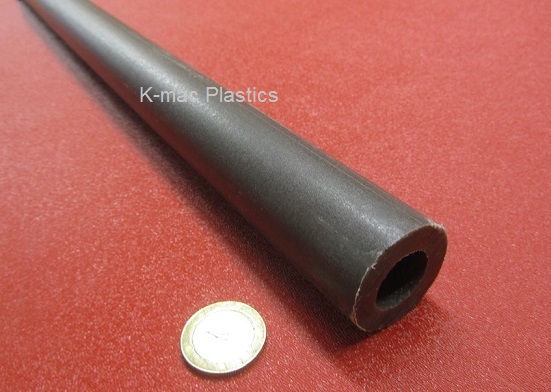

| Delrin AF Hollow Tubes - Brown In Color | ||||||
| OD (in.) | ID (in.) | Wall (in.) | Length | Part # | Price Per 5 Feet | Order Online |
|---|---|---|---|---|---|---|
| .250 | .125 | .062 | 5 Feet | KM-24136 | $45.10 | Add to Order |
| .500 | .250 | .125 | 5 Feet | KM-24134 | $137.70 | Add to Order |
| .625 | .250 | .187 | 5 Feet | KM-24131 | $210.70 | Add to Order |
| .625 | .500 | .062 | 5 Feet | KM-24135 | $128.30 | Add to Order |
| .750 | .250 | .250 | 5 Feet | KM-24130 | $290.60 | Add to Order |
| .750 | .500 | .125 | 5 Feet | KM-24133 | $218.10 | Add to Order |
| 1.00 | .500 | .250 | 5 Feet | KM-24138 | $382.50 | Add to Order |
| 1.25 | .750 | .250 | 5 Feet | KM-24129 | $501.10 | Add to Order |
| 1.25 | 1.00 | .125 | 5 Feet | KM-24132 | $350.80 | Add to Order |
| 1.50 | 1.00 | .250 | 5 Feet | KM-24128 | $605.70 | Add to Order |
| 2.00 | 1.50 | .250 | 5 Feet | KM-24127 | $830.60 | Add to Order |
| Rev. 08-22, 12-21, 06-21 | ||||||
