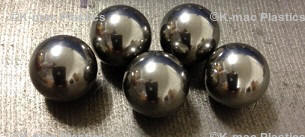

Carbon Steel Balls

Carbon Steel Balls

Carbon steel balls provide substantial savings for applications where conditions do not require a through-hardened ball. They add superior performance and dependability to products which utilize inexpensive anti-friction bearings. Typical applications include: casters, conveyors, roller skates, bicycles, overhead trolleys, drawer slides, garage doors, door locks and many others.


Carbon Balls

Click Here for Ball Terms and Definitions (Grades Available and Tolerances

Balls per Pkg Stock # Grade # Diameter  Price/Pkg
550700 KB-811 100 0.062 $5407.87
326360 KB-818 100 0.094 $2774.06
137600 KB-870 100 0.125 $734.78
70400 KB-852 100 0.156 $474.50
40800 KB-861 100 0.187 $279.07
25680 KB-1413 100 0.218 $244.47
17200 KB-1469 100 0.250 $190.92
12080 KB-1470 100 0.281 $158.97
8800 KB-1448 100 0.312 $150.48
6640 KB-1332 100 0.343 $113.59
5120 KB-1331 100 0.375 $155.65
5120 KB-1312 100 0.406 $166.40
3212 KB-1316 100 0.437 $175.82
3212 KB-1323 100 0.469 $185.97
2152 KB-1327 100 0.500 $189.88
1100 KB-1380 100 0.625 $113.30
270 KB-1387 100 1.000 $94.82
550700 KB-812 200 0.062 $5341.79
326360 KB-842 200 0.094 $2447.70
205520 KB-868 200 0.109 $1027.60
137600 KB-882 200 0.125 $718.27
70400 KB-850 200 0.156 $426.62
40800 KB-851 200 0.187 $250.51
25680 KB-1447 200 0.218 $219.31
20880 KB-1466 200 0.234 $136.97
17200 KB-1459 200 0.250 $184.04
12080 KB-1468 200 0.281 $154.14
8800 KB-1438 200 0.312 $146.96
6640 KB-1333 200 0.343 $183.26
5120 KB-1343 200 0.375 $153.60
4000 KB-1313 200 0.406 $134.23
3212 KB-1317 200 0.437 $173.77
3212 KB-1324 200 0.469 $184.37
2152 KB-1328 200 0.500 $138.80
270 KB-1388 200 1.000 $93.15
550700 KB-813 500 0.062 $5176.58
326360 KB-873 500 0.094 $2349.79
137600 KB-872 500 0.125 $704.51
70400 KB-871 500 0.156 $384.38
40800 KB-1415 500 0.187 $229.30
25680 KB-1404 500 0.218 $196.71
20880 KB-1467 500 0.234 $119.43
17200 KB-1471 500 0.250 $180.60
12080 KB-1439 500 0.281 $151.00
8800 KB-1450 500 0.312 $143.62
6640 KB-1334 500 0.343 $167.99
5120 KB-1344 500 0.375 $151.55
4000 KB-1314 500 0.406 $132.60
3212 KB-1318 500 0.437 $172.16
3212 KB-1325 500 0.469 $183.41
2152 KB-1329 500 0.500 $137.30
270 KB-1389 500 1.000 $88.26
550700 KB-814 1000 0.047 $4680.95
563920 KB-817 1000 0.078 $3586.53
326360 KB-839 1000 0.094 $2186.61
205520 KB-869 1000 0.109 $682.33
500 KB-1656 1000 0.125 $3.94
97200 KB-881 1000 0.141 $515.16
70400 KB-843 1000 0.156 $328.06
40800 KB-1405 1000 0.187 $187.68
25680 KB-1436 1000 0.218 $163.32
20880 KB-1480 1000 0.234 $174.97
17200 KB-1472 1000 0.250 $173.72
14320 KB-1449 1000 0.266 $208.79
12080 KB-1440 1000 0.281 $148.58
250 KB-1662 1000 0.312 $12.30
8800 KB-1451 1000 0.312 $16.10
6640 KB-1335 1000 0.343 $164.67
5120 KB-1345 1000 0.375 $149.50
4000 KB-1315 1000 0.406 $129.74
3212 KB-1330 1000 0.437 $168.31
3212 KB-1326 1000 0.469 $180.51
2152 KB-1361 1000 0.500 $146.03
1100 KB-1383 1000 0.625 $105.27
50 KB-1658 1000 0.750 $36.08
25 KB-1659 1000 0.875 $35.70
25 KB-1670 1000 1.000 $42.40
270 KB-1390 1000 1.000 $88.26

Carbon Steel Balls:  Available Grades and Sizes

Grade

Size Range in Inches and Millimeters

100 - 1000

1/16 - 2                 1.587 - 50.800

Balls per Pound

Size

Balls per Pound

Inches

Millimeters

1/16

1.587

27,500

3/32

2.381

8,160

1/8

3.175

3,440

5/32

3.968

1,760

3/16

4.762

1,020

7/32

5.556

642

1/4

6.350

430

9/32

7.143

302

5/16

7.937

220

11/32

8.731

166

3/8

9.525

128

13/32

10.318

100

7/16

11.112

80.3

15/32

11.906

65.3

1/2

12.700

53.8

17/32

13.493

44.8

9/16

14.287

37.5

5/8

15.875

27.5

11/16

17.462

20.7

3/4

19.050

15.9

13/16

20.637

12.5

7/8

22.225

10.0

1

25.400

6.72

1 1/8

28.575

4.72

1 1/4

31.750

3.44

1 3/8

34.925

2.59

1 1/2

38.100

2.00

1 5/8

39.687

1.57

1 3/4

44.450

1.25

1 7/8

47.625

1.02

2

50.800

.841

Material Analysis:
Carbon balls are made from the following special chemical analysis:

Material

CDA

Federal

Military

ASTM

UNS

AMS

Military and
Gov't Stds.

Carbon Steel

C 1010
C 1020

QQ-W-461

MIL-S 11310

A-29

G-10100
G-10200

-

-

Chemical Analysis:
Carbon.....................................................................0.10% to 0.20%
Manganese..............................................................0.60% to 0.90%
Silicon.......................................................................0.10% to 0.20%
Sulphur.....................................................................0.50% maximum
Phosphorus.............................................................0.040% maximum

Mechanical Properties:
Hardness for carbon steel balls, as measured on the balls surface is Rockwell “C” 60 (minimum) and subject to correction factors. See chart for minimum case depth.  Case depth reported is the effective case measured to the HRC 50 position (ref. ABMA Std. 10-38).  Minimum thickness considerations apply to case depth.

Tensile Strength............................................................53,000psi
Yield Strength................................................................44,000psi
Elongation in two inches..............................................26%
Reduction in area..........................................................50%
Modulus of elasticity.....................................................28 x 10
6 psi
Density...........................................................................0.284 lbs/cu. in.
